HDMI Switchers

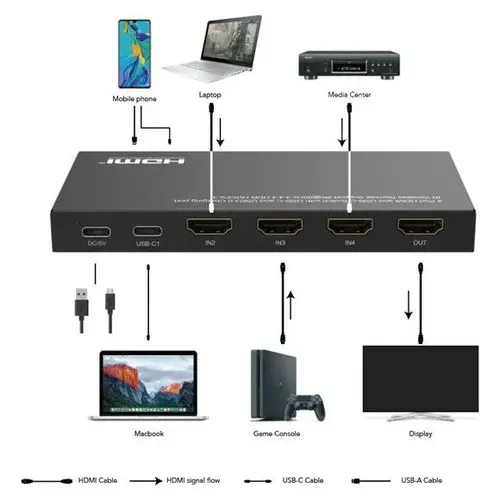

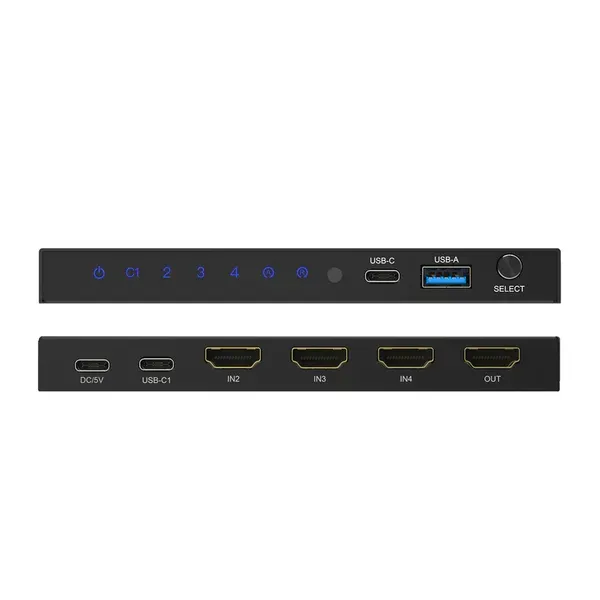

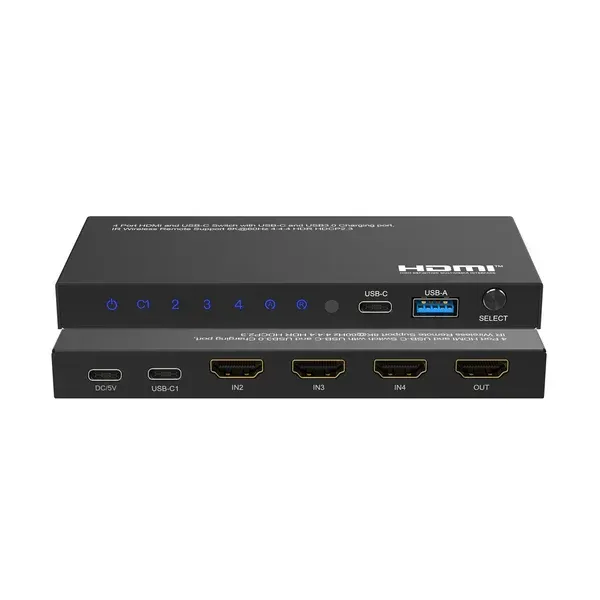

DVDO-Switcher-41-USBC-HDMI

8K 4x1 Switcher with 1 USB-C + 3 HDMI Inputs

Features

• HDMI 2.0b with 8K60 4:4:4 and HDCP 2.3 compliant
• 3 x HDMI + 1 x USB-C inputs / 1 x HDMI output
• USB-C input compatible with Thunderbolt 3 and DP 1.4 alt mode
• Automatic and manual switching
• Supports uncompressed (LPCM) and compressed (DTS, Dolby Digital, DTS-HD Master Audio, Dolby TrueHD) audio
• HDR10/HDR10+/Dolby Vision pass-through
• Controls: front panel button, IR remote, CEC
• Compatible with 3D signals
• Built-in Equalizer, Retiming and Driver
• 1 x USB-C + 1 x USB-A charging ports up to 5W (only one port can charge at a time)

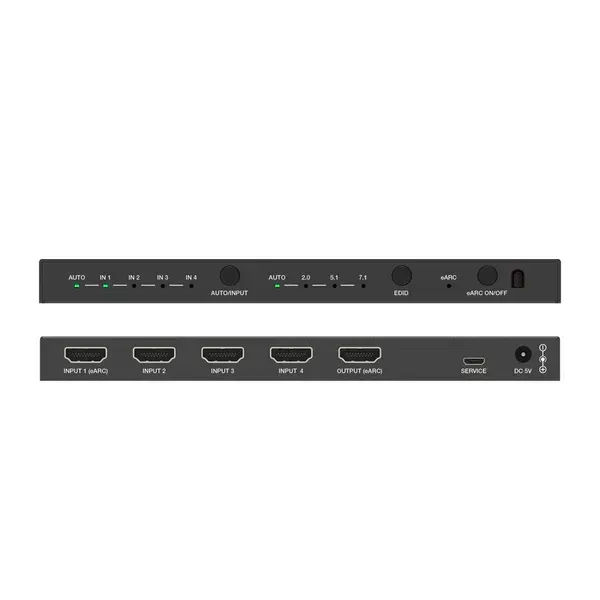

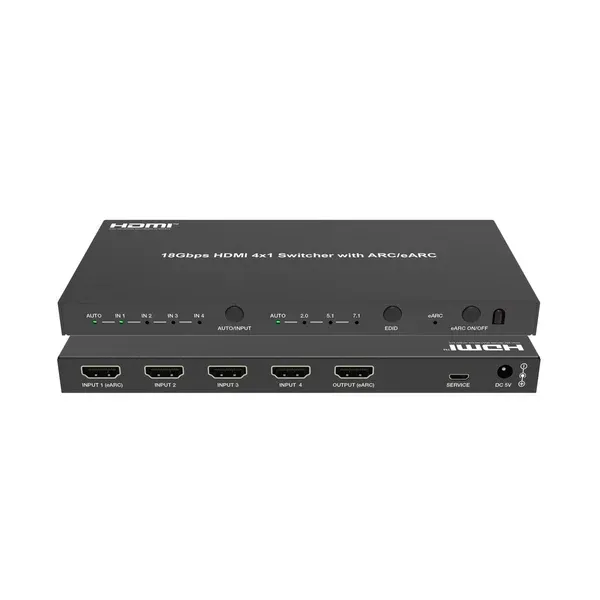

DVDO-Switcher-41-ARC

4K 4x1 HDMI Switcher with ARC

Features

• HDMI 2.0b, HDCP 2.2 / 1.x and DVI 1.0 compliant
• Video resolutions up to 4K2K@60Hz RGB/YCbCr 4:4:4
• 18Gbps video bandwidth
• 3D, HDR, HDR10, HDR10+, Dolby Vision pass-through
• Supported audio formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
• Auto/manual switching mode for input source
• ARC/eARC function
• Advanced EDID management (AUTO/2.0CH/5.1CH/7.1CH selectable)
• Flexible control via front panel buttons or IR remote control

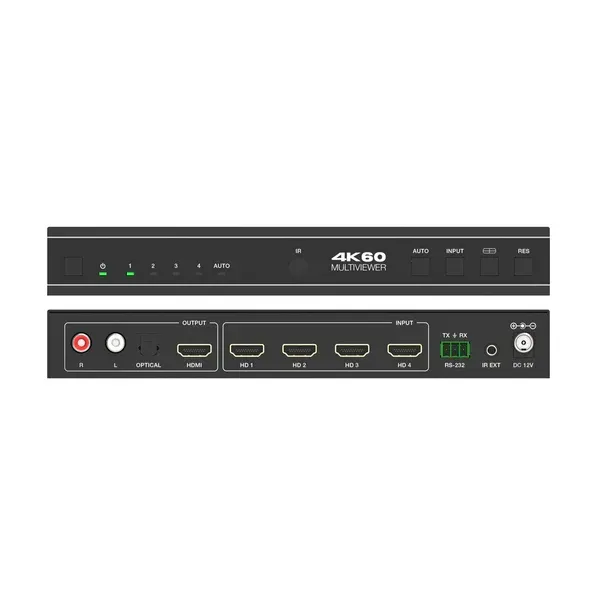

Features

• HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant
•  Support resolutions up to 4K@60Hz 18Gbps
•  Support LPCM, AC3, DD+, DTS, DTS-HD, up to 7.1 audio channel
•  8 display modes: Single, PIP, PBP (1), PBP (2), Triple (1), Triple (2), Quad (1), Quad (2)
•  Seamless switching in single screen display mode & fast switching in multiview display mode
•  Audio de-embedding via analog and optical fiber audio ports
•  Volume control and independent audio selection
•  OSD navigation for advanced settings
•  EDID management
•  Control via front panel buttons, IR remote, OSD menu navigation, control software, RS-232

HDMI Matrix Switchers

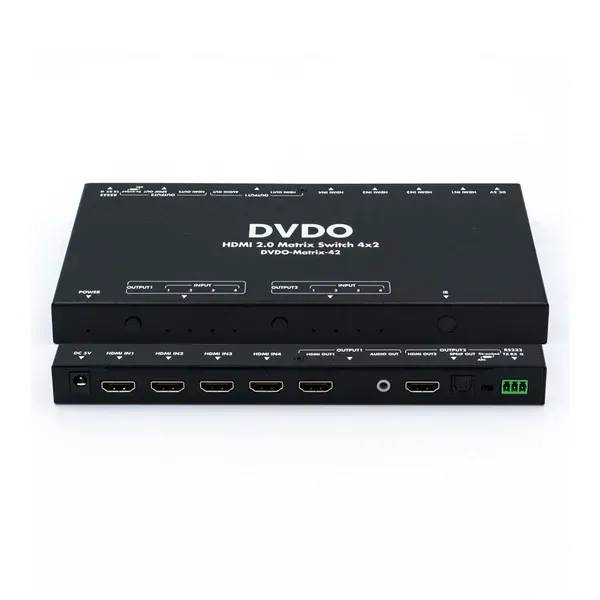

DVDO-Matrix-42

4K 4x2 HDMI Matrix Switcher

Features

• 4xHDMI 2.0b inputs and two outputs with HDCP 2.2 compliant
• 4K UHD @60Hz with 4:4:4 sampling, plus various HDR support incl., Dolby Vision, HDR10/10+, and HLG
• Both HDMI outputs support 4K to 1080P downscaling automatic EDID management
• HD audio freely crosses from HDMI inputs to HDMI outputs, incl., Dolby Atmos and DTS-X
• HDMI audio de-embedding for both HDMI outputs with digital S/PDIF and analog stereo outputs
• HDMI output 2 supports ARC via optical output
• Control methods by front buttons, IR and RS-232

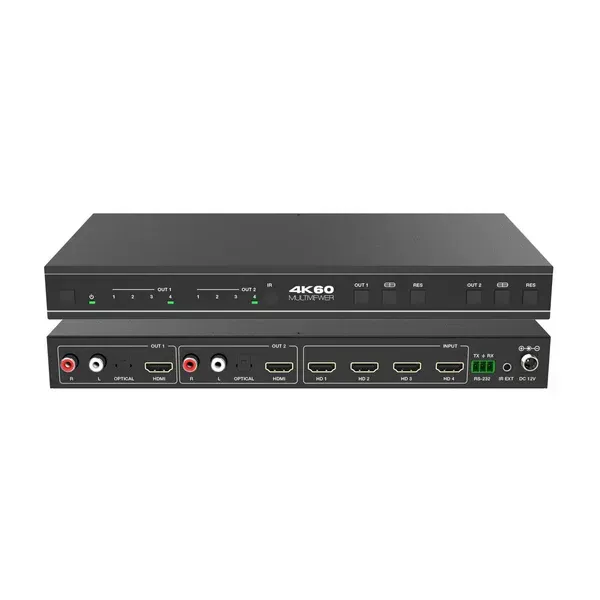

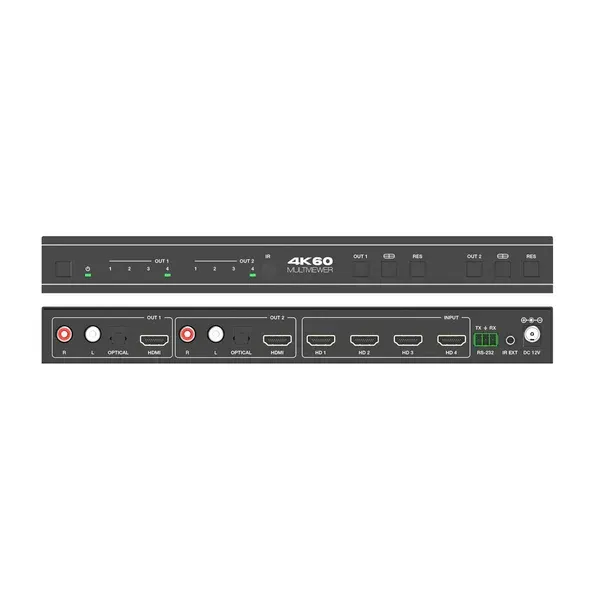

DVDO-Matrix-42SS-MV

4K 4x2 Seamless HDMI Matrix Switcher with Multiview

Features

• HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant
•  18Gbps uncompressed bandwidth, input and output resolution up to 4K2K@60 4:4:4
•  HDMI audio formats support LPCM, DD+, DTS, Dolby TrueHD, DTS HD-master pass-through
•  Seamless switching between inputs
•  Combined multiple images independent layouts to display on two displays
•  Up to 8 display modes: Single, PIP, PBP(1), PBP(2), Triple(1), Triple(2), Quad(1), Quad(2)
•  Audio de-embedding via analog and optical fiber audio ports
•  Control via front panel buttons, IR remote, OSD menu navigation, controller software and RS-232
•  Each output supports scaling function
•  Support independent audio selection
•  Advanced EDID management

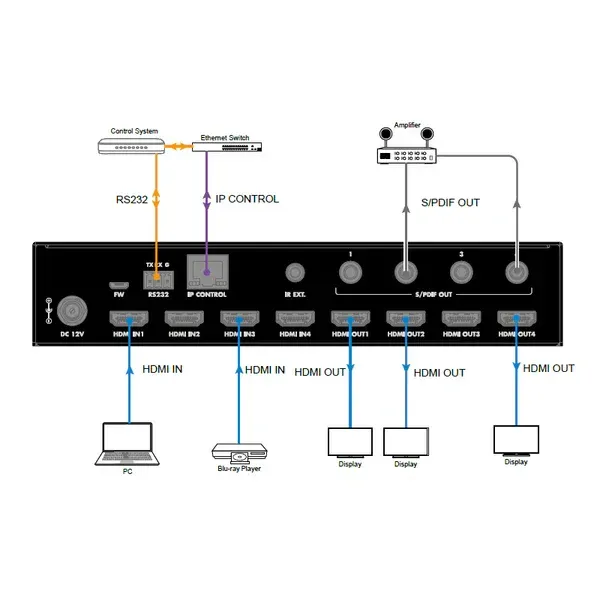

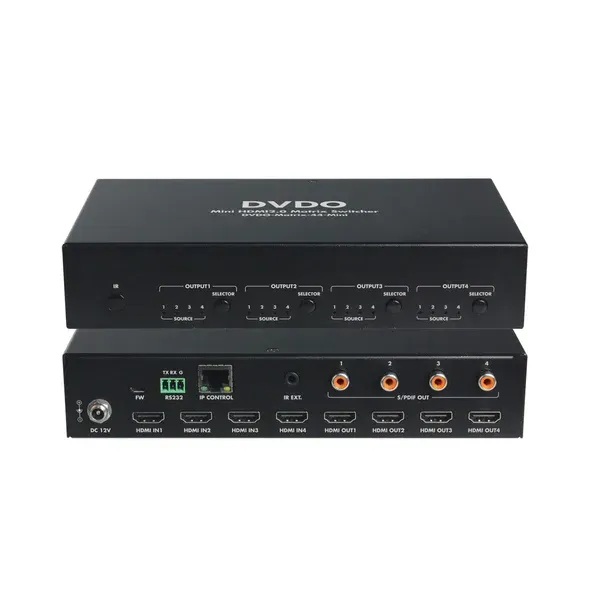

DVDO-Matrix-44-Mini

4K 4x4 HDMI Matrix Switcher

Features

• Simple and cost-effective
• 4x HDMI2.0 inputs & 4x HDMI2.0 outputs
• Each HDMI output supports 4K to 1080p downscaler with resolution up to 4K 60Hz 4:4:4
• HDCP2.2 compliant
• Supports EDID presets and smart EDID, each input can be assigned to smart EDID mode.
• Each HDMI output has a SPDIF audio breakout
• Compact size for easy installation and use
• Supports IR,RS-232 and IP port for control.
• Plug and Play

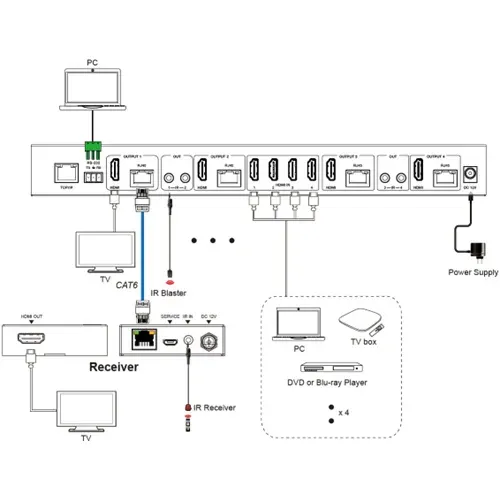

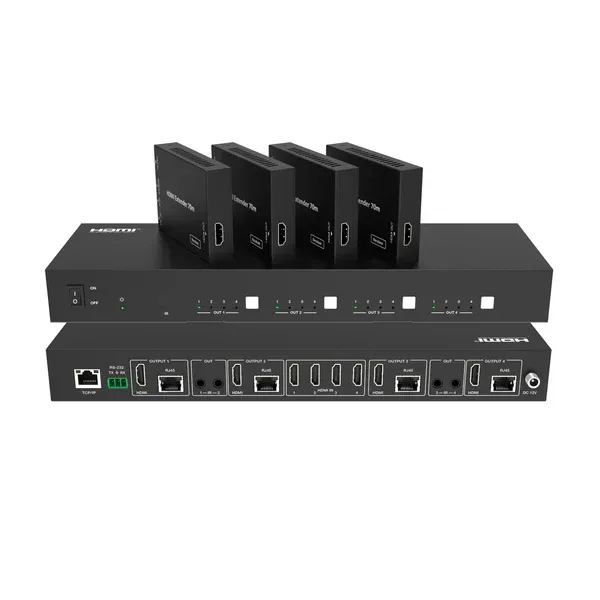

DVDO-Matrix-44-CAT

4K 4x4 HDMI Matrix Switcher with Mirrored Category Outputs

Features

• HDMI 2.0b and HDCP 2.2/1.x compliant
• Video resolutions up to 4K2K@60Hz (YUV 4:4:4) on all HDMI & CAT ports
• 4 HDMI inputs, 4 HDMI + 4 mirrored CAT outputs
• HDMI ports support 18Gbps lossless compressed video bandwidth
• HDR, HDR10, HDR10+, Dolby Vision & HLG
• CAT output can extend the transmission distance up to 230ft/70m via a single CAT6 cable
• HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD and DTS-HD Master Audio)
• Advanced EDID management and CEC control
• 12V POC on all CAT ports
• One-way IR matrix function
• Control via front panel buttons, IR remote, RS-232, LAN and Web GUI

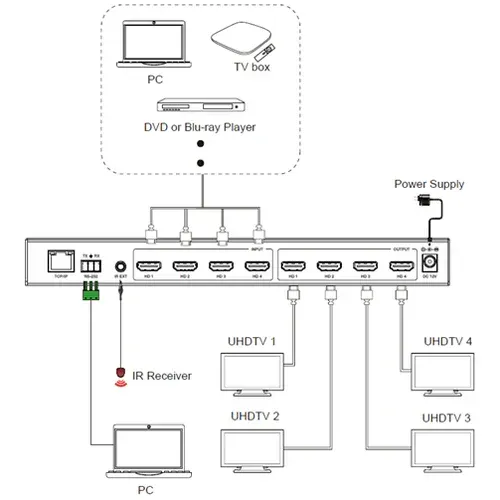

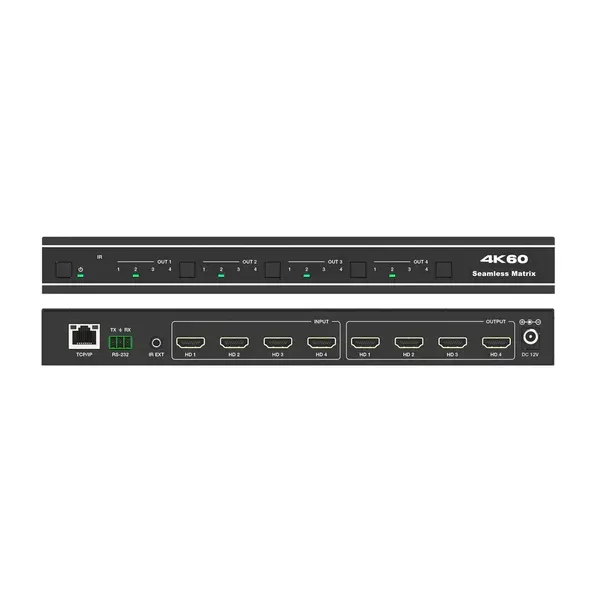

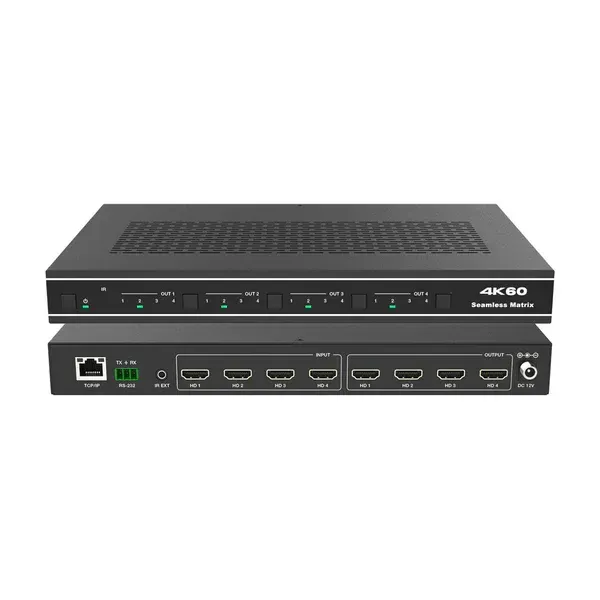

Features

• Compliant HDCP 2.2 and HDCP 1.4
•  Features 2 operational modes: 4×4 Matrix (seamless switch) and Video Wall (2×2, 4×1 or 1×4 configurations)
•  Seamless video switching
•  Video inputs support all industry standard video resolutions including VGA-WUXGA (up to 1920×1200 @60Hz) and 480i-4K (3840x2160 @60Hz 4:4:4, 4096x2160 @60Hz 4:4:4) as specified in HDMI 2.0b
•  HDMI outputs support upscaling / downscaling to any resolution up to 4096x2160@60Hz 4:4:4
•  Support LPCM, DD, DD+, DTS, Dolby TrueHD, DTS HD-master pass-through
•  Advanced EDID management
•  Web interface module for control and configuration
•  Control via front panel, IR, RS-232 and TCP/IP

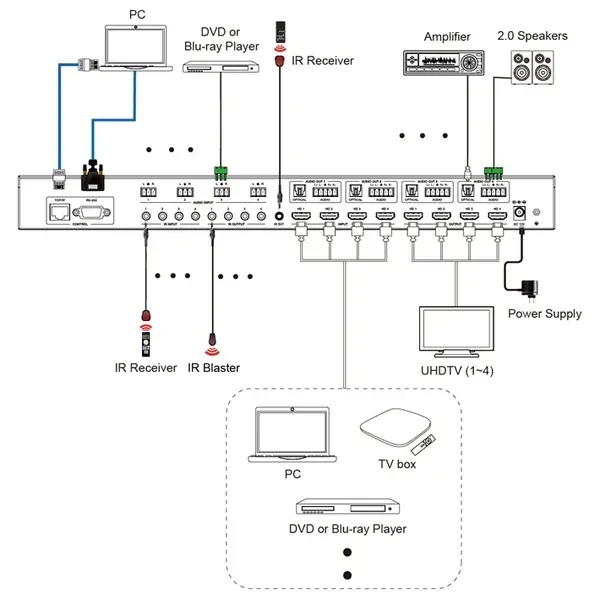

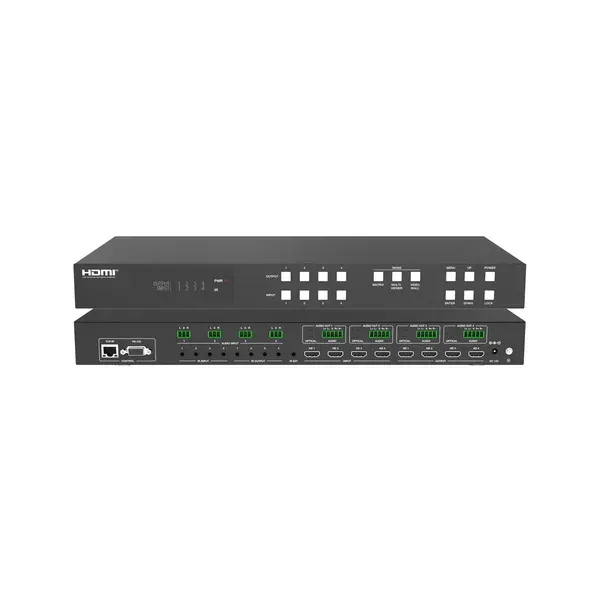

DVDO-Matrix-44SS-MV-VW

4K 4x4 Seamless HDMI Matrix Switcher & Video Wall Controller with Multiview

Features

• HDMI 2.0 / HDCP 2.2 compliant
•  Supports video resolutions up to 4K@60Hz 4:4:4 at an 18Gbps video bandwidth
•  Seamless switching between inputs
•  12 display modes with multiview function and 9 display modes with video wall function
•  Audio embedding and de-embedding with separate audio inputs and outputs
•  HDMI audio formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS- EX, DTS-96/24, DTS High Res, DTS-HD Master Audio
•  CEC control & advanced EDID management
•  Control via front panel buttons, IR remote, RS-232, and IP (web GUI)

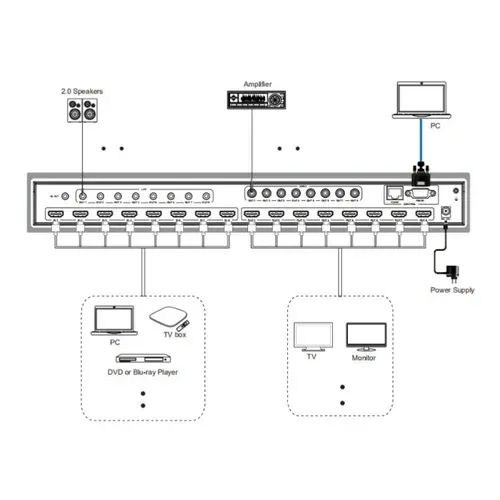

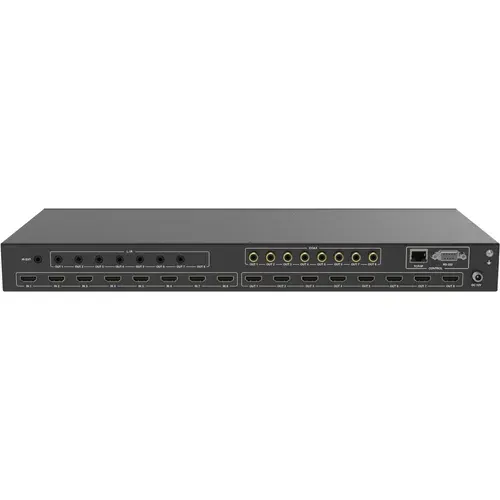

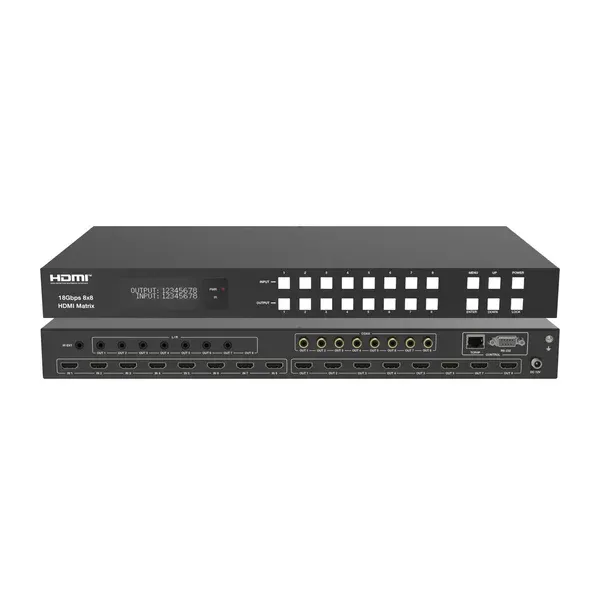

DVDO-Matrix-88

4K 8x8 HDMI Matrix Switcher

Features

• HDMI 2.0b, HDCP 2.2 and HDCP 1.4 compliant
• Video resolution up to 4K2K@60Hz (YUV 4:4:4) on all HDMI ports
• Support 18Gbps video bandwidth
• Dolby Vision, HDR10+ and HLG are supported.
• Support 4K->1080P Down Scaler for each output port
• HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD and DTS-HD
• Master Audio)
• Audio de-embedded is supported via analog and coax ports
• ARC, CEC and smart EDID management are supported
• 1U rack mounted design with front panel OLED display
• Control via front panel buttons, IR remote, RS-232, LAN and Web GUI

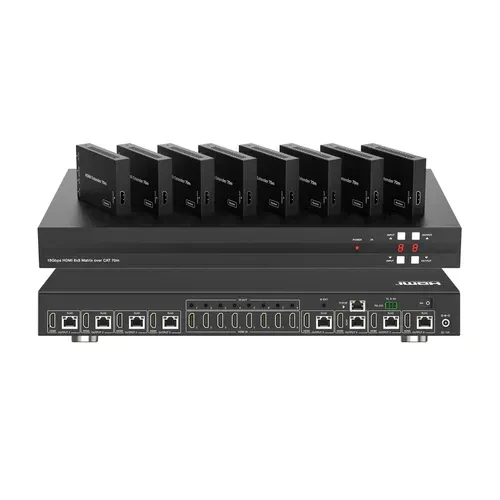

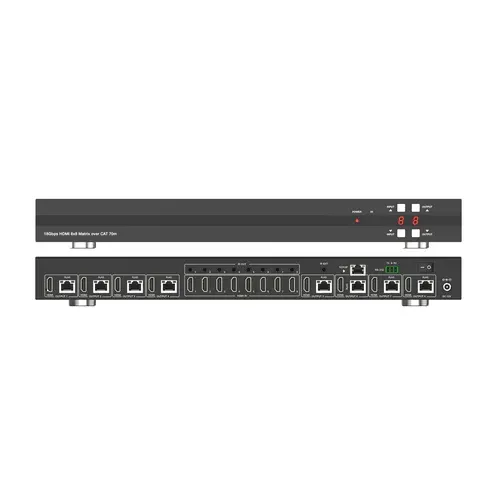

DVDO-Matrix-88-CAT

4K 8x8 HDMI Matrix Switcher with Mirrored Category Outputs

Features

• HDMI 2.0b and HDCP 2.2/1.x compliant
• Video resolutions up to 4K2K@60Hz (YUV 4:4:4) on all HDMI & CAT ports
• 8 HDMI inputs, 8 HDMI + 8 mirrored CAT outputs
• HDMI ports support 18Gbps lossless compressed video bandwidth
• HDR, HDR10, HDR10+, Dolby Vision & HLG
• CAT output can extend the transmission distance up to 230ft/70m via a single CAT6 cable
• HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD and DTS-HD Master Audio)
• Advanced EDID management and CEC control
• 12V POC on all CAT ports
• One-way IR matrix function
• Control via front panel buttons, IR remote, RS-232, LAN and Web GUI

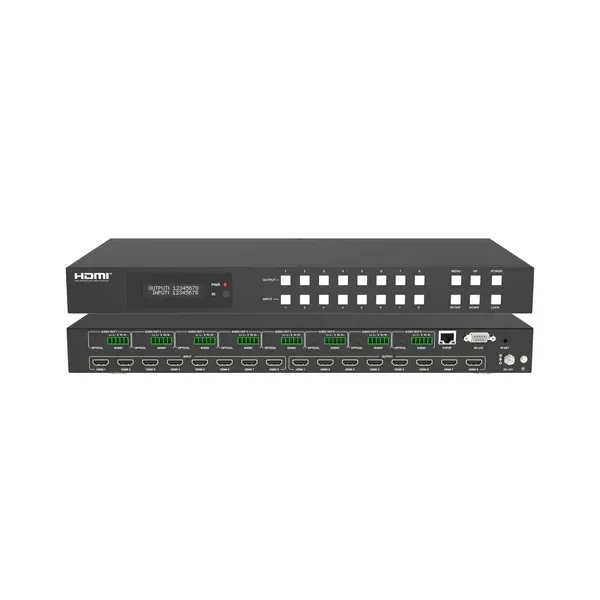

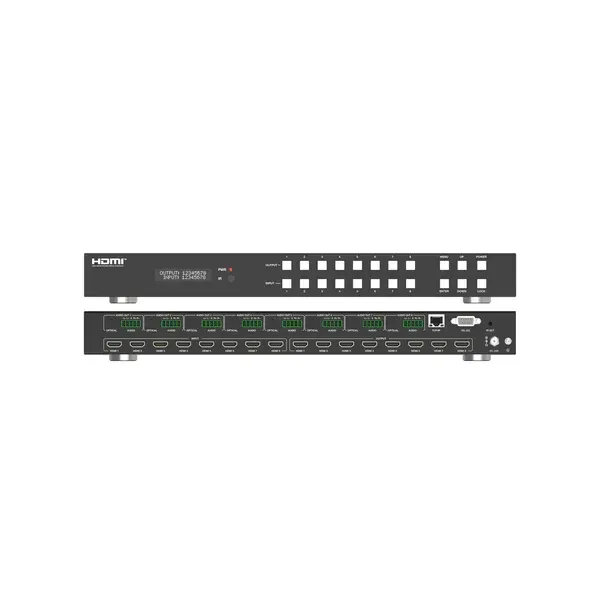

DVDO-Matrix-88SS-VW

4K 8x8 Seamless HDMI Matrix Switcher & Video Wall Controller

Features

• HDMI 2.0b / HDCP 2.2 compliant
•  Supports video resolutions up to 4K@60Hz 4:4:4 at an 18Gbps video bandwidth
•  Seamless switching between inputs
•  Independent setting of each output including downscaling
•  Horizontal & vertical mirror options for each output
•  Several background options when no output signal: black screen, blue screen, color bar, grayscale,…
•  Advanced video wall function with multiple display layouts up to 8 rows or 8 columns
•  8 L/R balanced / unbalanced audio outputs
•  HDMI audio formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS- EX, DTS-96/24, DTS High Res, DTS-HD Master Audio
•  Advanced EDID management with 12 standard modes, 2 user-defined modes and 8 copy modes
•  Control via CEC, front panel buttons, IR remote, RS-232, and IP (web GUI)
