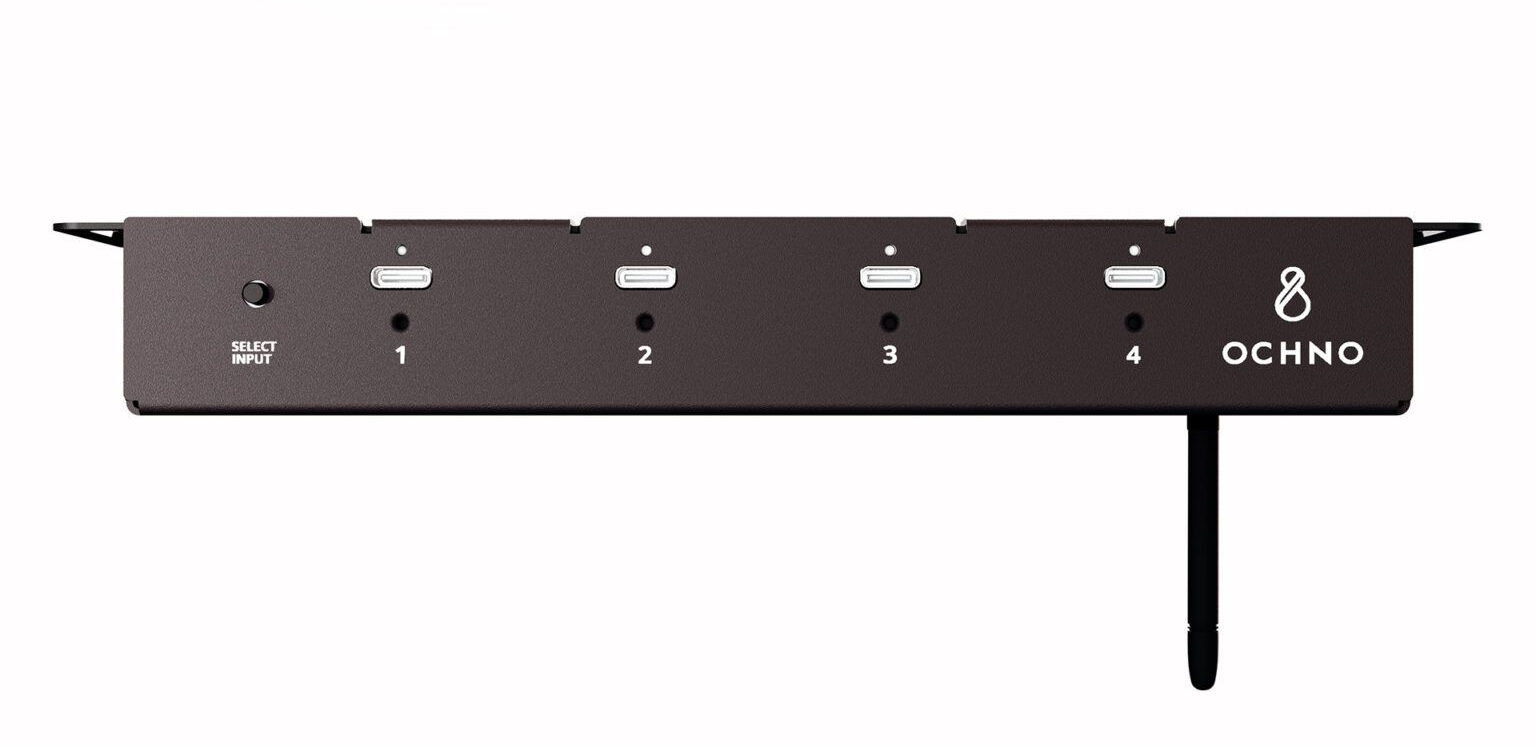

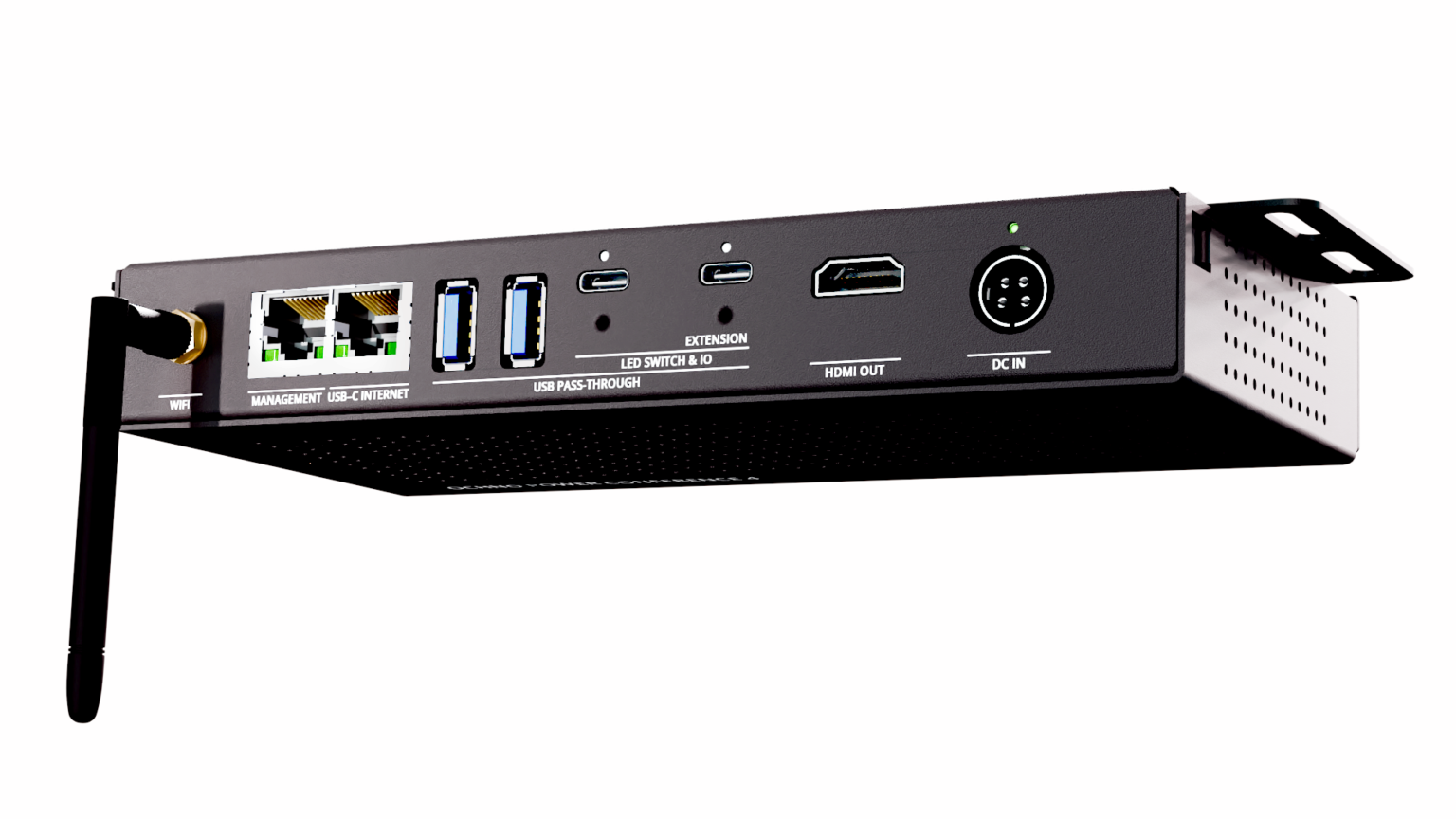

Ochno Power Conference 4

Ochno O-PC-4 transforms meeting-room connectivity from a range of confusing cables and menus into the most flexible and accessible user experience available.

Offering up-to four USB-C connections, manifesting in on-table sockets or pull-out cables with a simple one-button interface, offering intelligent switching between 100W charging, 4K presentation and bring you own meeting conferencing mode.

  • Up to four sockets for 100W charging, presentation and USB device connectivity for conferencing
  • Delivers connectivity for charging, presentation and BYOM conferencing in MTR and Zoom Rooms, or standalone BYOD video peripherals.
  • Simple one-button interface for charging, presentation and BYOM mode
  • Pair with Ochno Power Conference Node for dual 4K display support
  • DP Alt mode USB-C connection; nothing to download
  • Optional 10m USB-C full feature extension cable for connectivity to in-room AV and UC
  • Daisy-chain up-to 4 x O-PC-4 systems for up-to 16 sockets or pull-out cables.
  • Full management available using Ochno Management Console or Ochno Operated
  • 3-year warranty

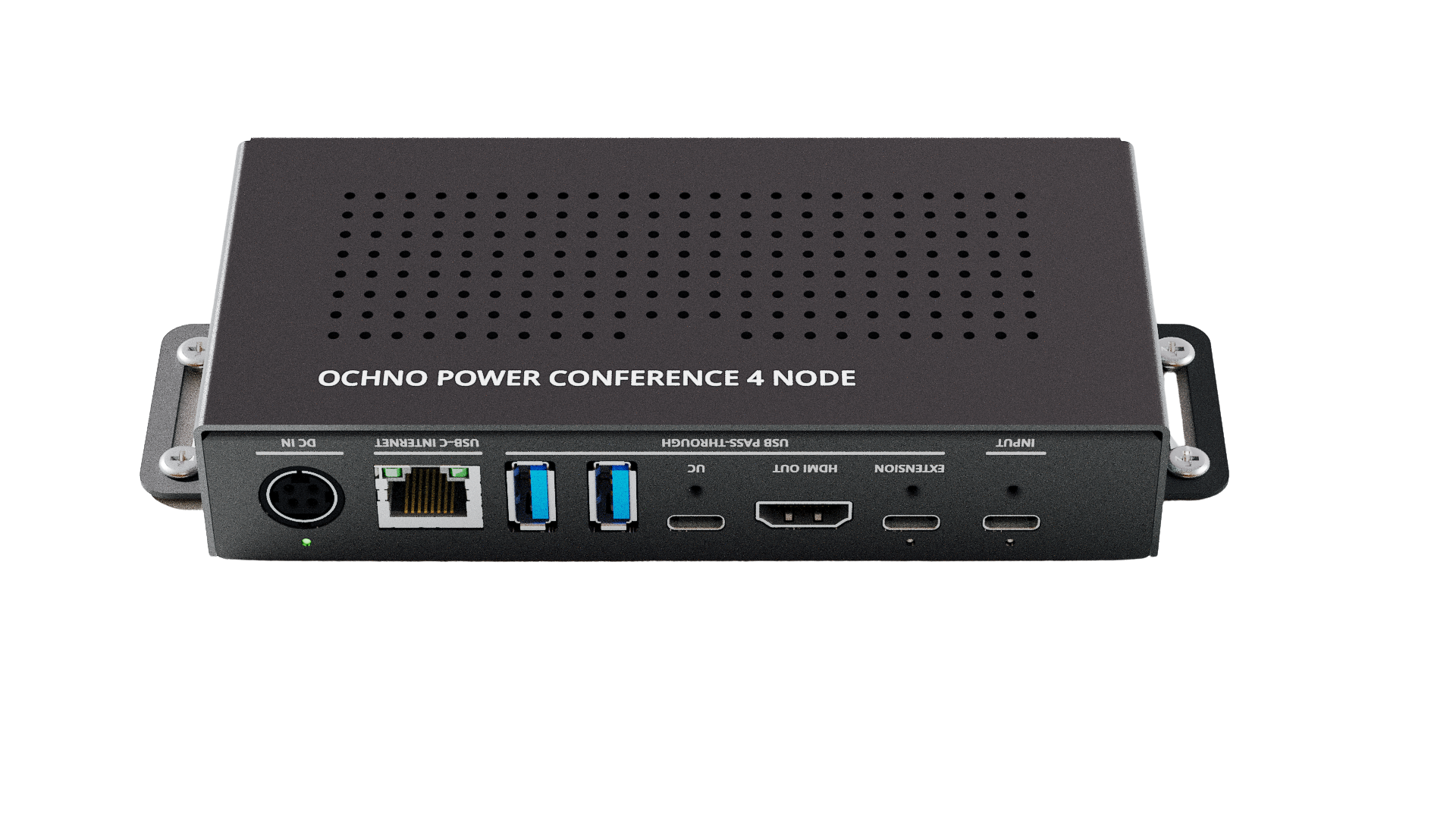

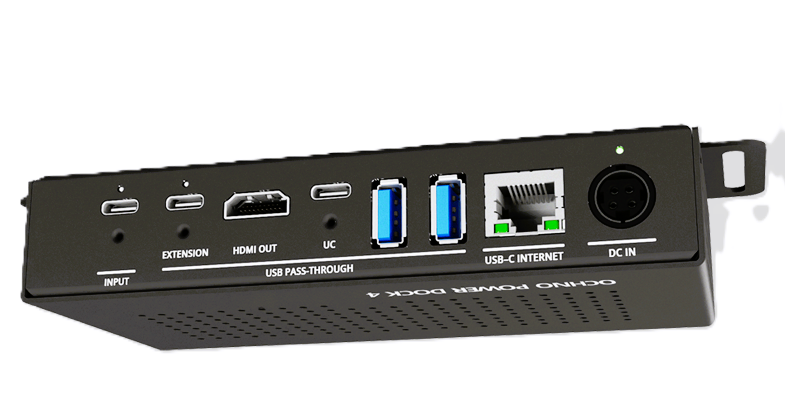

Ochno Power Conference Node

Ochno's Power Conference Node can be connected to the Ochno Power Conference 4 using the 10m full-featured USB-C cable. Power Conference Node offers extension for dual displays, or additional laptop charging and data connectivity on the meeting room table.

  • Dual 4k display support (HDMI and USB extension)
  • DP-Alt Mode, nothing to download
  • 100W charging for connected laptops
  • Manageable using Ochno Management Console or Ochno Operated
  • 3-year warranty

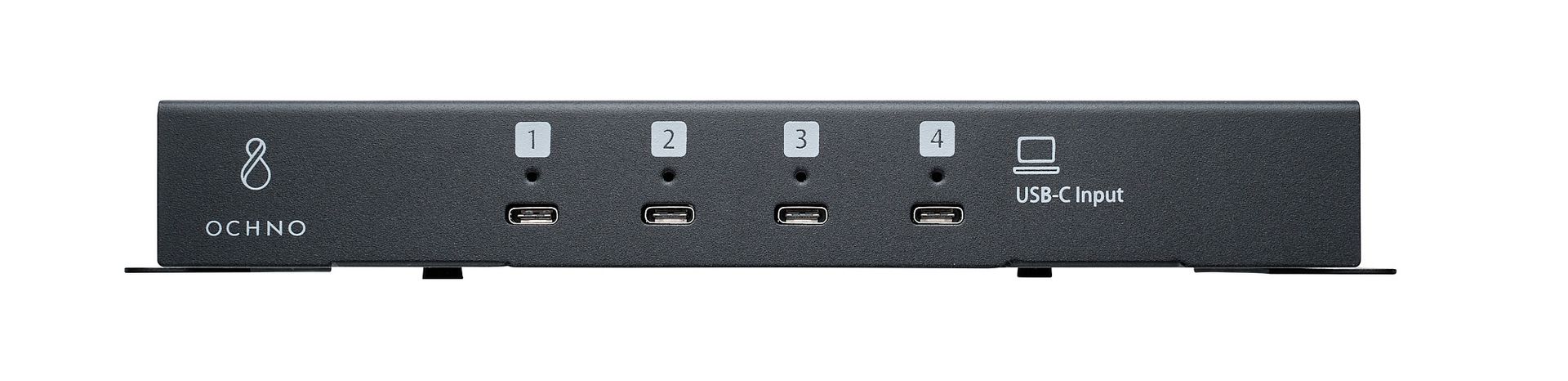

Ochno Power Conference 3

Ochno Power Conference 3 offers DP-Alt Mode connectivity for up-to four laptops. USB-C connections are available as sockets or pull-out USB-C cables. Each socket offers a button to toggle between charging, presentation and USB peripheral connectivity for BYOM conferencing as a standalone solution or integrated into Microsoft Teams Room and Zoom room systems

  • Up to 4 USB-C sockets or pull-out USB-C cables for connection offering 3 modes: 100W charging, presentation and BYOM conferencing
  • Single display support, up to 4k 60Hz.
  • Single button toggle between presentation, presentation and BYOM modes
  • Integrate into Microsoft Teams Room systems for presentation and multi-platform conferencing
  • Connect to room systems using USB and HDMI 2.0.
  • 3-year warranty
  • Local management using Ochno Management Console
  • Remote management with Ochno Operated

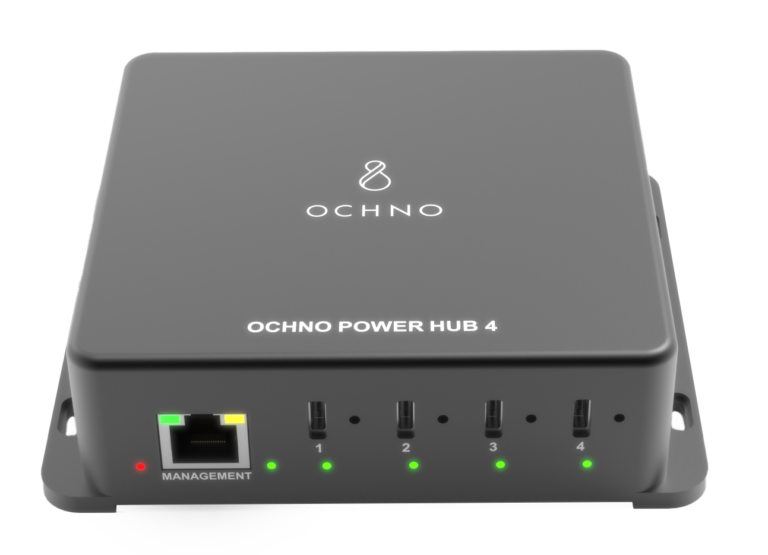

Ochno Power Hub

Ochno's Power Hub offers a professional charging solution suitable for laptops, phones and tablets. Designed to be elegantly installed into room and desk furniture. Power Hub can deliver up-to 140W charging through each channel and can be remotely managed using Ochno Operated.

  • Professional integrated USB-C power hub for meeting room tables and workstations
  • Up to 140W power delivery (240W total)
  • Suitable for laptops, mobile phones and tablets
  • Remote management and usage statistics available though Ochno Operated
  • Use with Ochno sockets and cables for elegant cabling solutions
  • 3-year warranty

Sockets and Cables

Charging Sockets

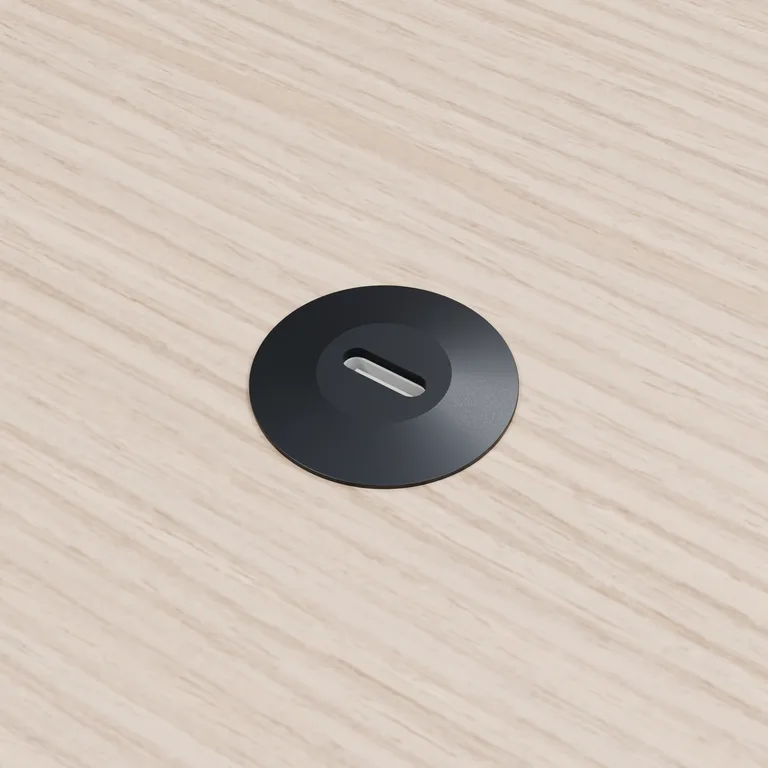

O-CO-200-BL-1

  • Black finish charging-only socket
  • Suitable for Ochno cable
  • 18mm hole required
  • Max power 240W Pd 3.1
  • USB 3.2 Gen 2

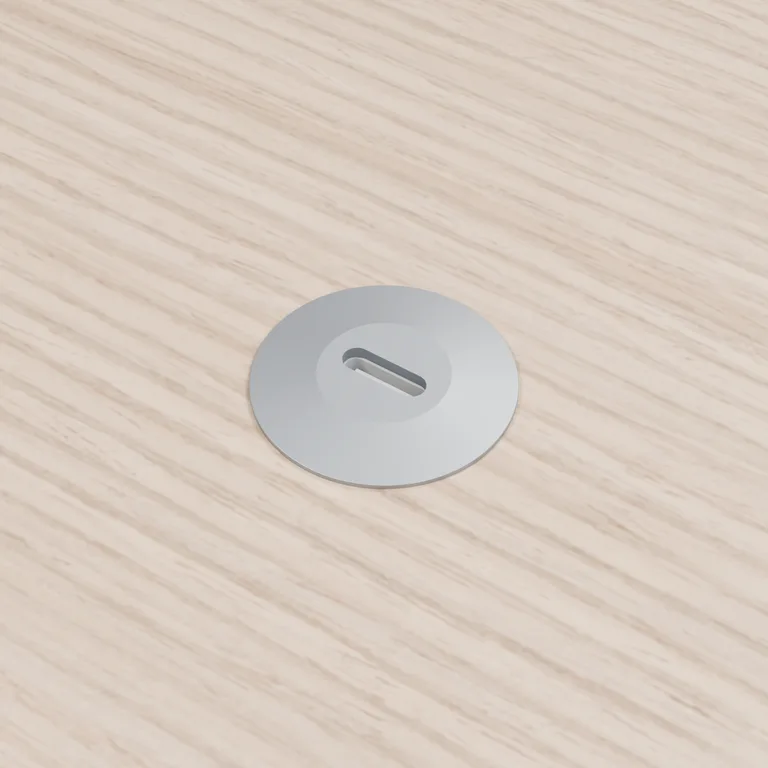

O-CO-200-AL-1

  • Aluminium finish charging-only socket
  • Suitable for 2m Ochno cable
  • 18mm hole required
  • Max power 240W Pd 3.1
  • USB 3.2 Gen 2

LED Sockets

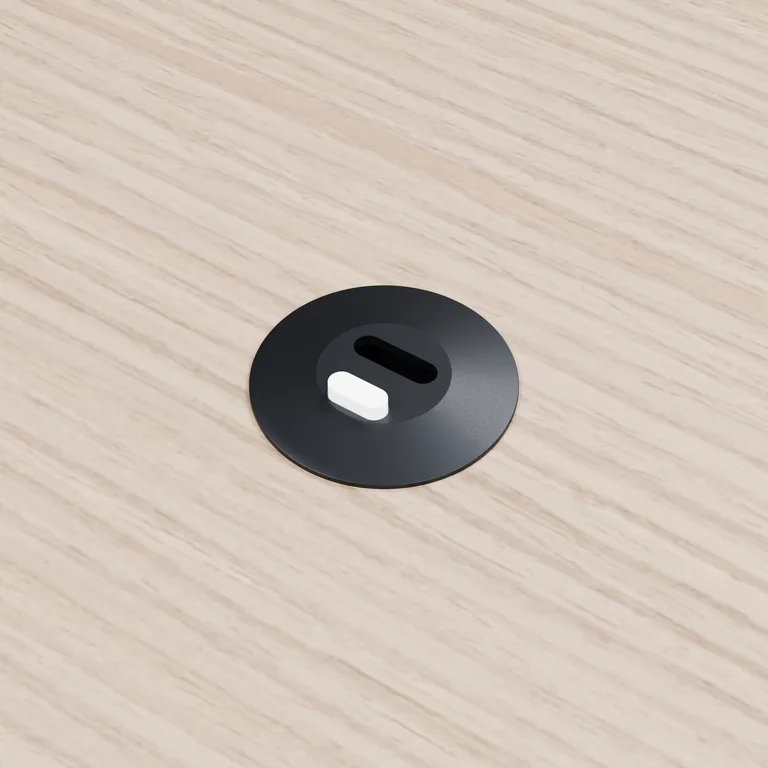

O-SWO-100-S-1

  • Black finish LED socket
  • LED button toggles charge, present and BYOM mode
  • Length: 1m
  • Suitable for Ochno cable
  • 18mm hole required
  • Max 100W
  • USB 3.2 Gen 2
  • DP Alt mode 1.4

O-SWO-100-1

  • Aluminium finish LED socket
  • LED button toggles charge, present and BYOM mode
  • Length: 1m
  • Suitable for Ochno cable
  • 18mm hole required
  • Max 100W
  • USB 3.2 Gen 2
  • DP Alt mode 1.4

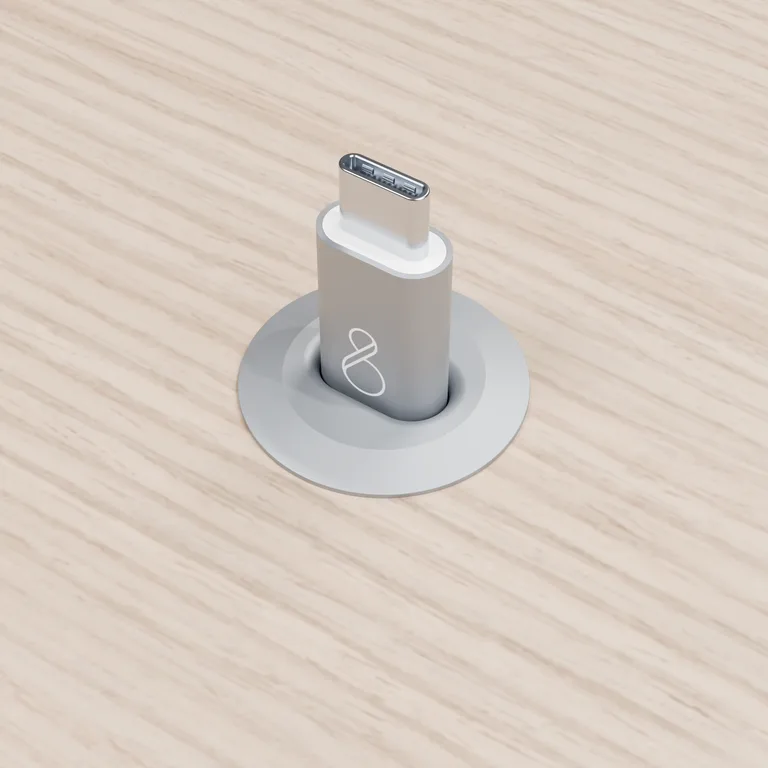

Pull-out charging sockets

O-POS-AL-1

  • Ochno Pull Out Socket in Aluminium finish
  • Suitable for charging
  • 20mm hole required
  • Use with Ochno Cable Management Kit (O-POS-CMGT)
  • Pair with Ochno 2m USBC cable (O-USBG2-200-CC-BL-1)


O-POS-BL-1

  • Ochno Pull Out Socket in black finish
  • Suitable for charging
  • 20mm hole required
  • Use with Ochno Cable Management Kit (O-POS-CMGT)
  • Pair with Ochno 2m USBC cable (O-USBG2-200-CC-BL-1)

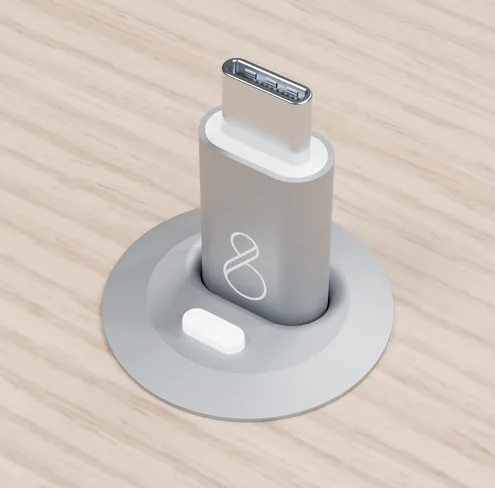

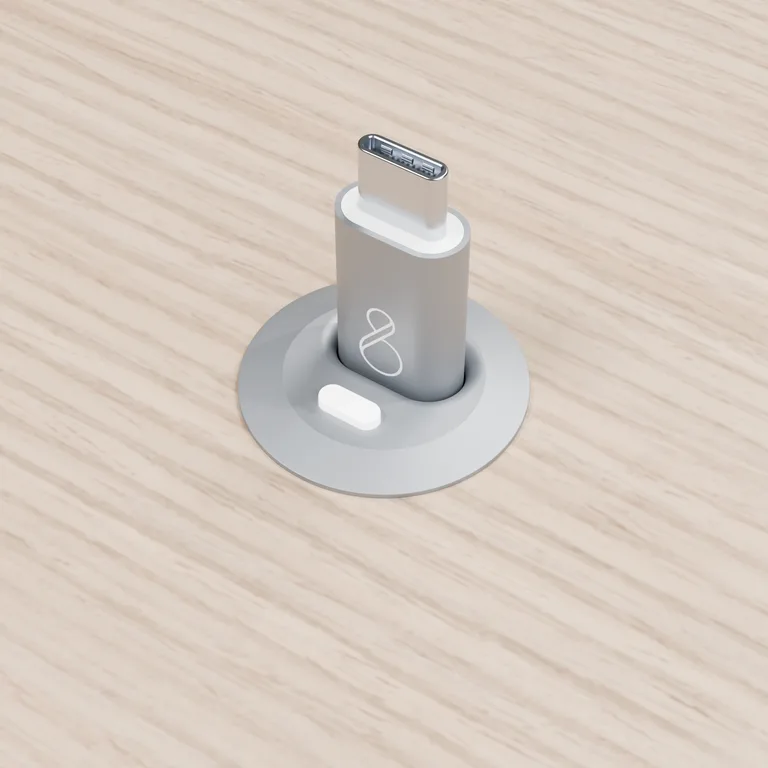

Pull-out LED Sockets

O-POS-LED-AL-1

  • Ochno Pull-out Socket with LED button in aluminium finish
  • Suitable for charging, presentation and BYOM
  • Pair with Ochno Cable Management Kit (O-POS-CMGT)
  • Pair with Ochno 2m USBC cable (O-USBG2-200-CC-BL-1)

O-POS-LED-BL-1

  • Ochno Pull-out Socket with LED button in black finish
  • Suitable for charging, presentation and BYOM
  • Pair with Ochno Cable Management Kit (O-POS-CMGT)
  • Pair with Ochno 2m USBC cable (O-USBG2-200-CC-BL-1)

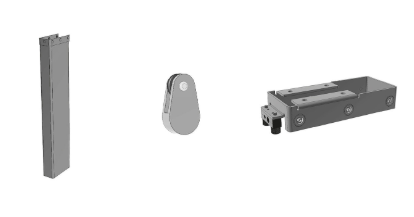

Pull Out Cable Management Kit

O-POS-CMGT

  • Cable management kit for Ochno pull-out sockets
  • Contains Bracket for attaching USB-C cable, branded cloth bag and cable weight

Cables

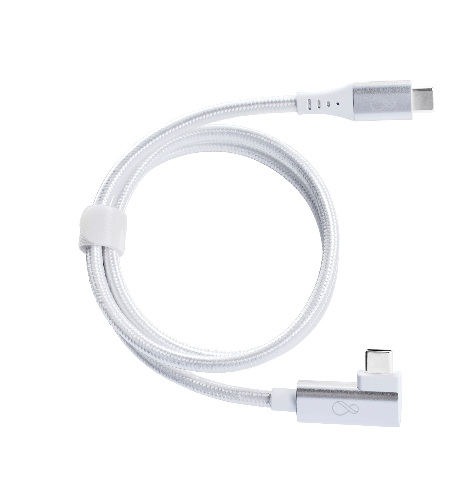

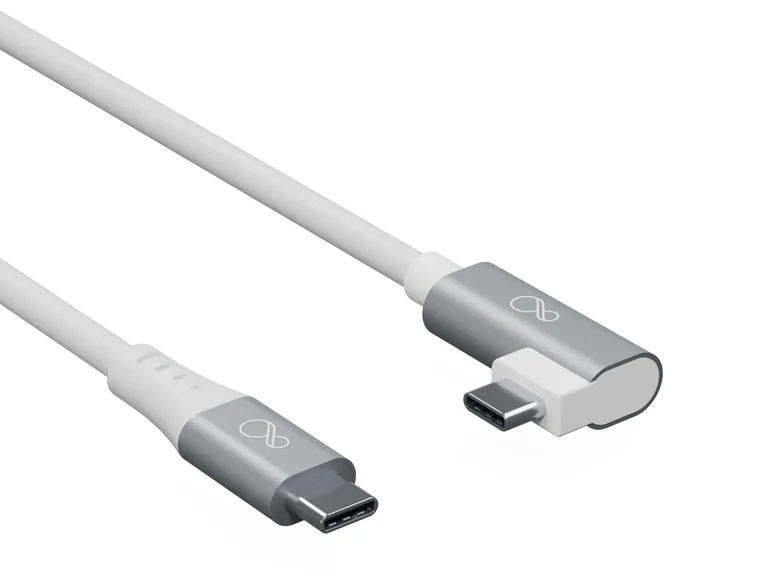

O-USBG2-70-2/ O-USBG2-70-S-2

  • Angled Ochno 70cm USB-C cable
  • USB-C connectivity for Ochno sockets (not for pull-out)
  • Length - 700mm
  • Connector 1 - straight USB-C male
  • Connector 2 - 90-degree USB-C male
  • 100W max power
  • USB3.2 Gen2
  • DP Alt Mode 1.4
  • Available in
  • white (O-USBG2-70-2) or
  • black (O-USBG2-70-S-2)

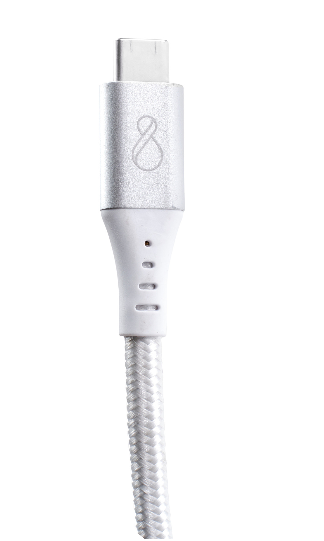

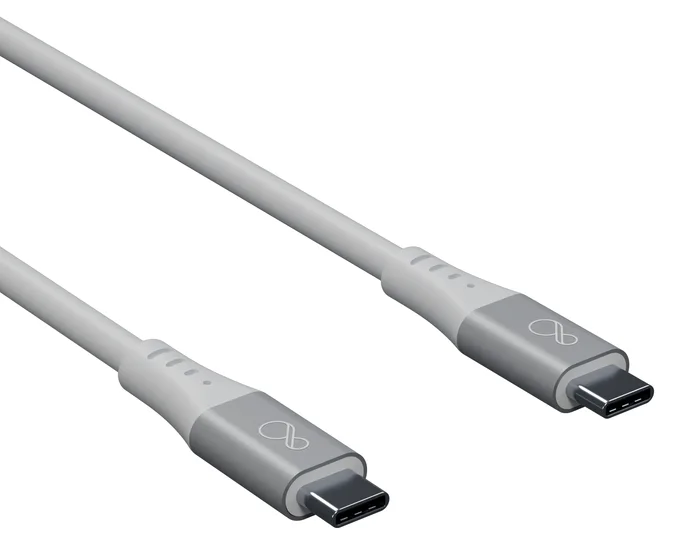

O-USBG2-70-1/ O-USBG2-70-S-1

  • Straight-ended Ochno 70cm USB-C cable
  • USB-C connectivity for Ochno sockets (not for pull-out)
  • Length - 700mm
  • Connector 1 - straight USB-C male
  • Connector 2 - straight USB-C male
  • 100W max power
  • USB3.2 Gen2
  • DP Alt Mode 1.4
  • Available in
  • white (O-USBG2-70-1) or
  • black (O-USBG2-70-S-1)

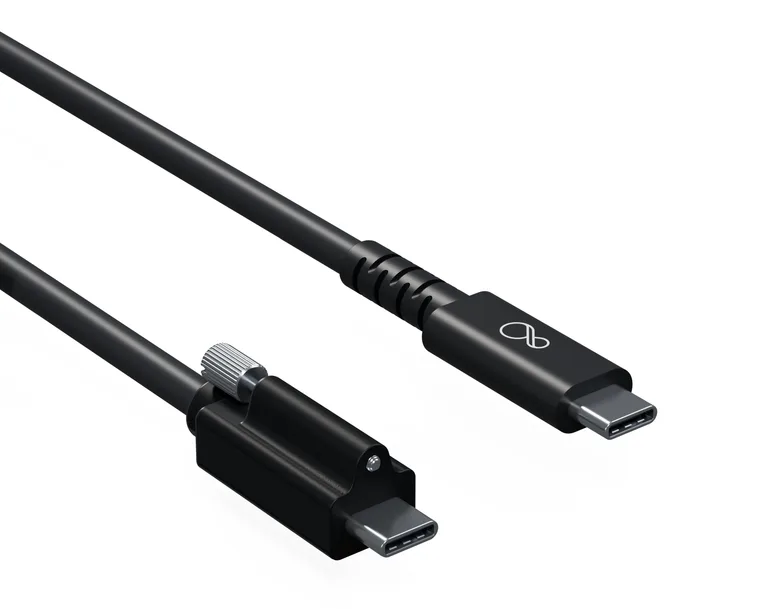

O-USBG2-200-CC-BL-1

  • Black USB-C cable for pull out sockets
  • 200cm length
  • Connector 1 - straight USB-C male
  • Connector 2 - straight USB-C male
  • 240w max power
  • USB3.2 Gen2
  • 10Gbps
  • DP Alt mode 1.4

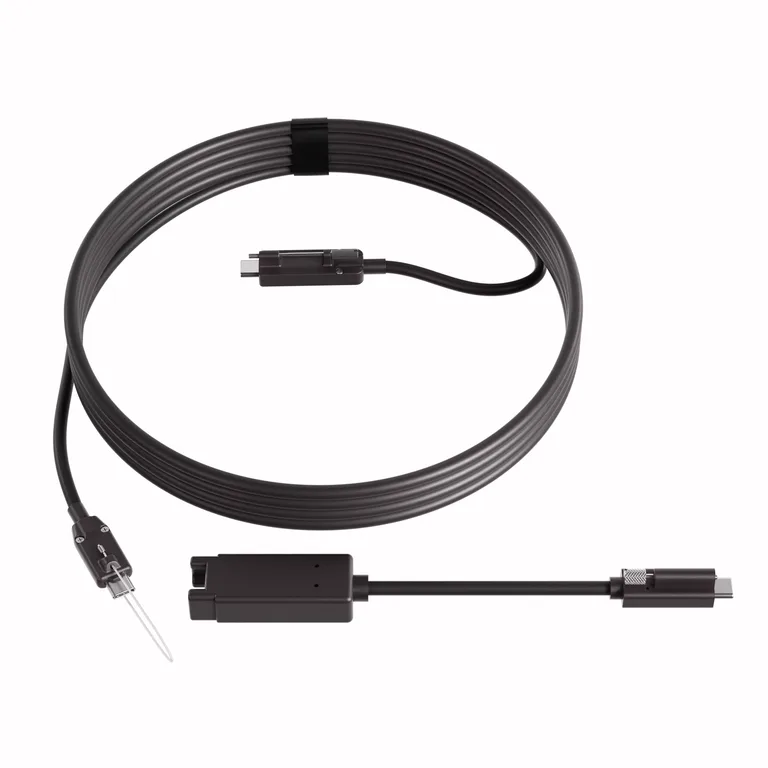

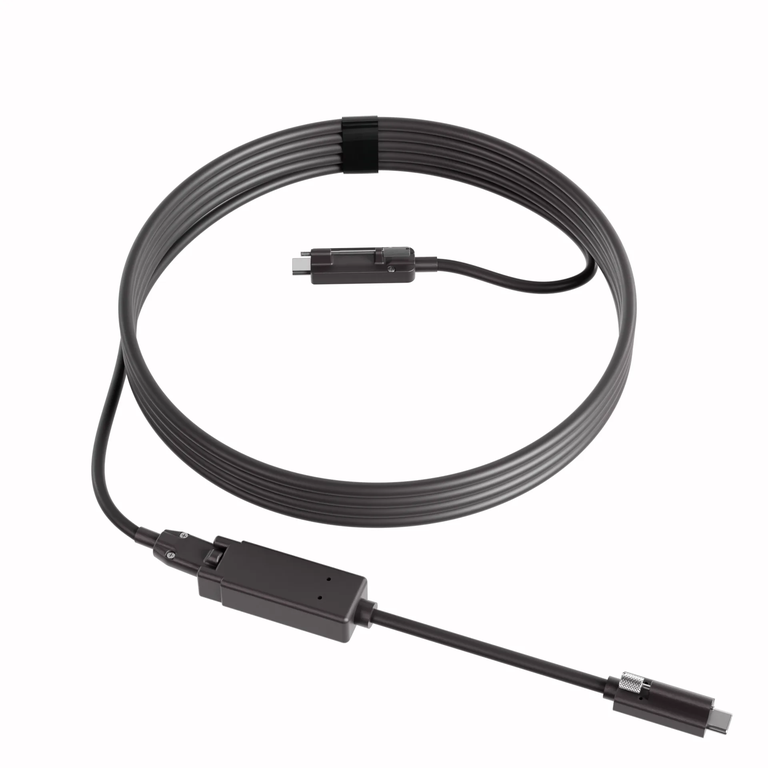

O-EC-10

  • Ochno USB-C Extension Cable
  • Connects display side of meeting room to table
  • 10 metre length
  • Active optical cable
  • 16kg max pull force
  • 25mm diameter with bend radius of up-to 50mm
  • USB 2.0 HS (480Mbit/s) USB 3.2 Gen 2 (10Gbps)
  • Uni-directional
  • 2-lane DP + 2 lane USB 3.2
  • Not suitable for laptop charging

Adapters

O-HDMI-TO-USBC-2

  • HDMI to USBC adapter
  • 100mm length
  • Adapter for laptops with no USB-C ports

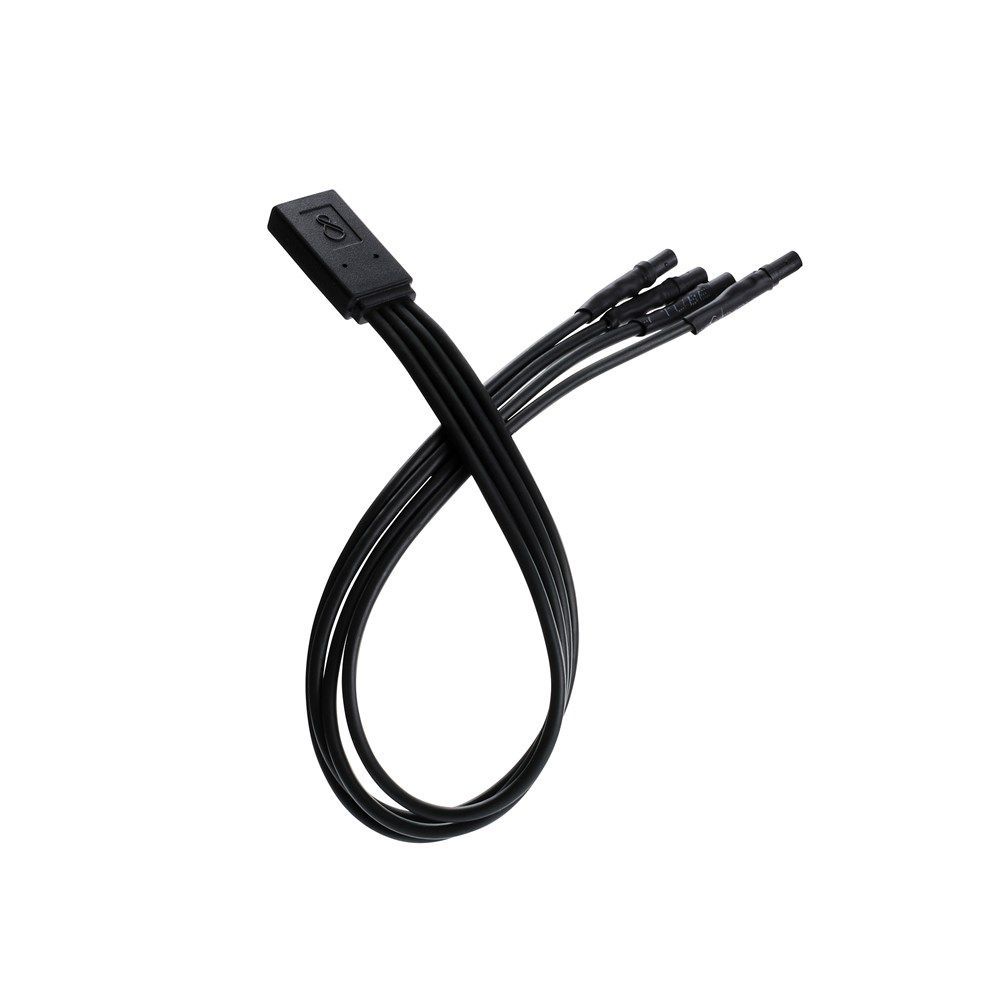

O-SBC-200-1

  • Adapter for Ochno sockets offering control for systems with LED sockets and pull-outs
  • 100cm length
  • Required for any installs with LED buttons.
