HDMI Extenders
HDMI Extenders
DVDO-CAT4K-40
Features
- HDMI 1.4, HDCP 1.4 and DVI 1.0 compliant
- Supports video resolutions up to 4K2K@30Hz YUV 4:4:4
- Maximum transmission distance: CAT6: 230ft/70m for 1080p, 131ft/40m for 4K30 CAT5e: 197ft/60m for 1080p, 115ft/35m for 4K30
- Can copy EDID from the display connected either to the receiver or to the transmitter’s loopout
- Allows cascading to other HDMI extenders through the HDMI loop out
- One-way PoC (from transmitter to receiver)
- One-way IR signal transmission
- Compact design for easy and flexible installation
DVDO-CAT4K-50
Features
- HDMI 2.0, HDCP 2.2 and DVI 1.0 compliant
- Supports video resolutions up to 4K2K@60Hz YUV 4:4:4 with 18Gbps bandwidth
- Maximum transmission distance: 164ft/50m with CAT5e/6 cable - Automatic EDID copy function
- HDMI loop out on Tx
- Two-way PoC (Tx or Rx)
- One-way IR pass-through
- HDR
- Compact design for easy and flexible installation -
- Mounting ears included

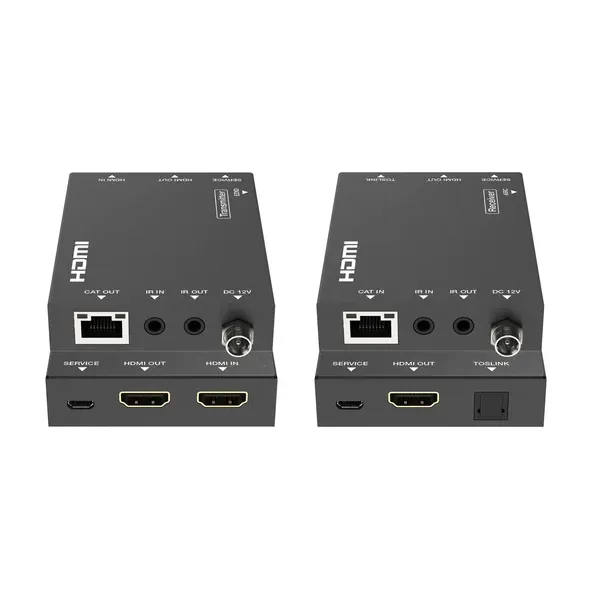

DVDO-CAT4K-70
Features
- HDMI 2.0b and HDCP 2.2 compliant
- Supports video resolutions up to 4K2K@60Hz RGB/YCbCr 4:4:4
- Maximum transmission distance: 230ft/70m with CAT6/6a cable
- Can copy EDID from the display connected either to the receiver or to the transmitter’s loopout
- Allows cascading to other HDMI extenders through the HDMI loop out
- ARC and audio de-embedding, audio output through the optical port of the receiver
- HDR, HDR10, HDR10+, Dolby Vision, HLG
- Bi-directional PoC (Tx or Rx)
- Bi-directional IR control
- Compact design for easy and flexible installation

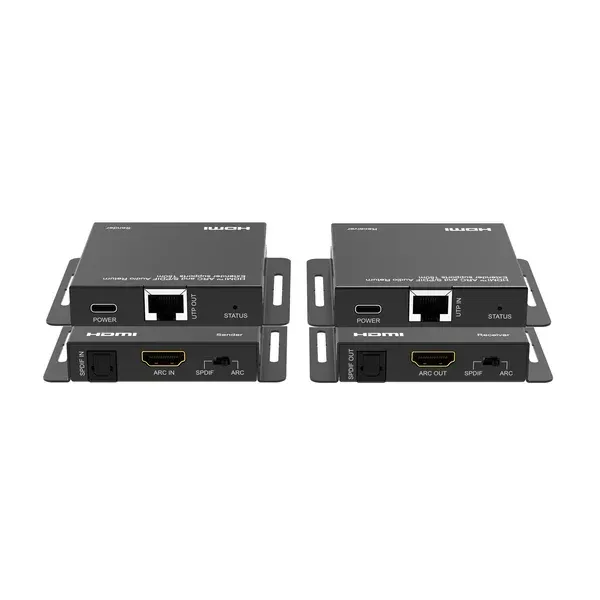

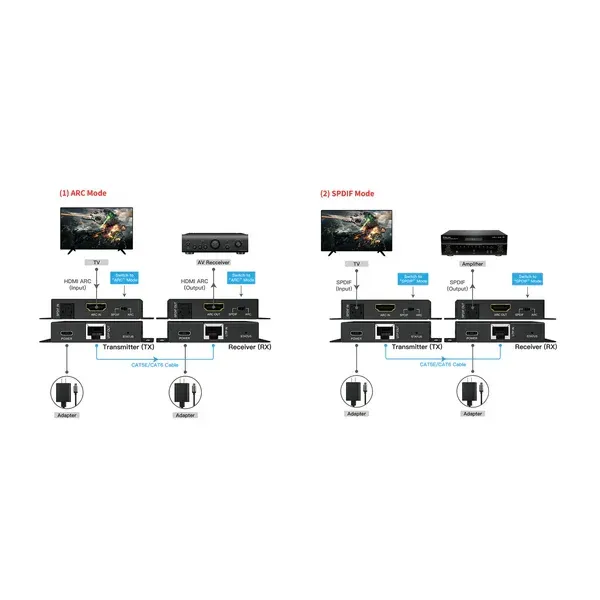

DVDO-CAT-HDMIAudio-150
Features
- Extends digital S/PDIF or HDMI ARC audio signals up to 150m/490ft via a single Cat5e or Cat6 cable
- Supports PCM, DTS and Dolby Digital audio formats
- High performance, zero signal loss
- Supports CEC pass-through between HDMI ARC Input port and ARC Output port
- Dual digital audio inputs: 1 x S/PDIF and 1 x HDMI ARC
- Dual digital audio outputs: 1 x S/PDIF and 1 x HDMI ARC can output each signal separately
- Selectable ARC and S/PDIF modes through toggle switches on both Tx and Rx

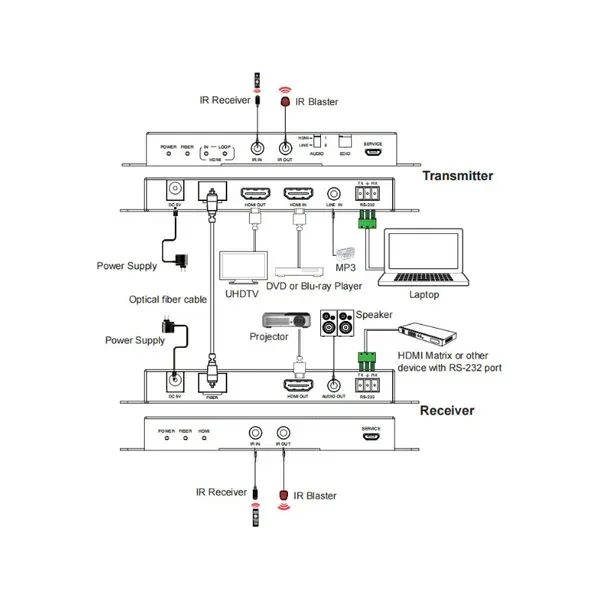

DVDO-HDMIFiber-1
Features
- 18Gbps HDMI over Optical Fiber Extender with Audio Extracting
- HDMI 2.0b, HDCP 2.2 and DVI 1.0 compliant.
- Support 18Gbps video bandwidth.
- Video resolution up to 4k2k@50/60Hz 4:4:4. • HDMI audio formats: LPCM2/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD.
- Support 3D and HDR format video, does not support CEC control.
- Transmission distance up to 33000 feet/10 km (over single-mode fiber cable).
- Support bidirectional IR control, RS-232 pass-through and EDID management for simple and convenient control.
- Transmitter supports loop output (sharing local HD video and audio) and audio embedding function.
- Receiver supports audio extracting output function.
- Compact design for easy and flexible installation.

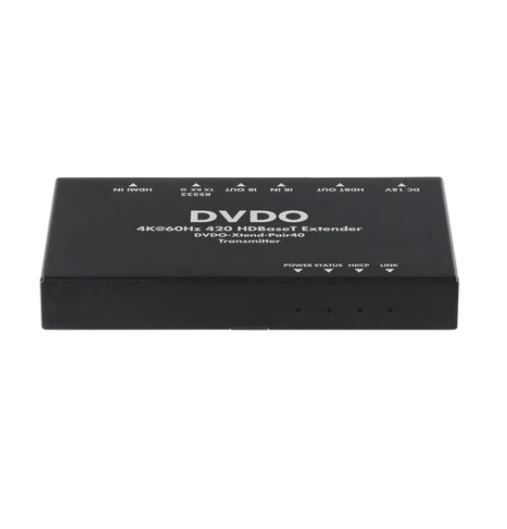

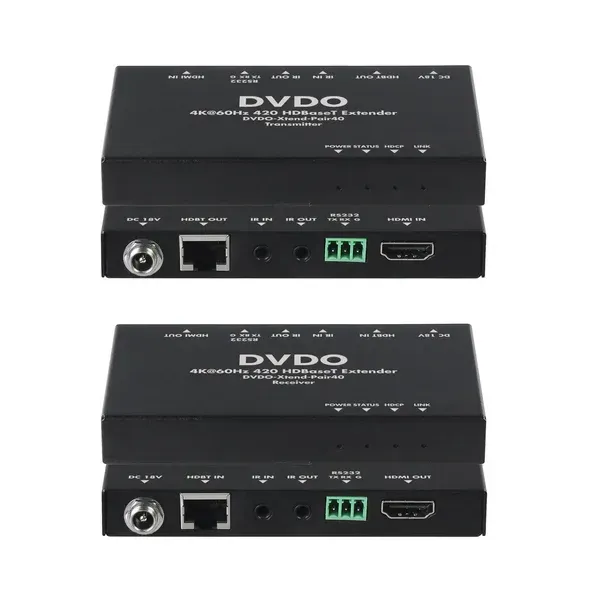

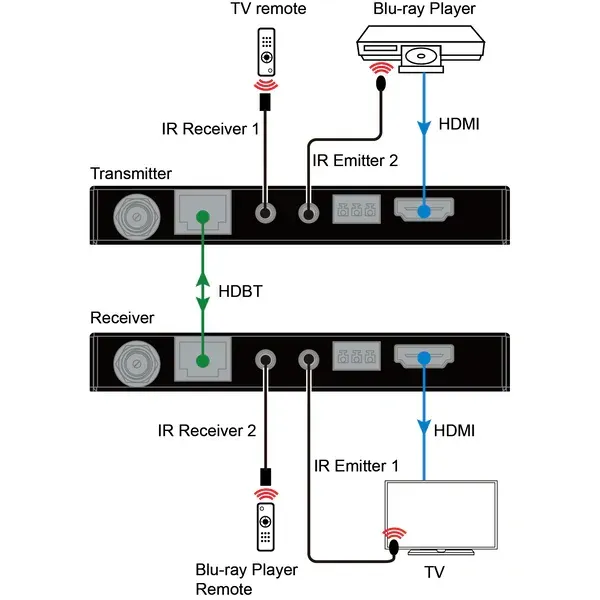

DVDO-Xtend-Pair40
Features
- HDBaseT Extender
- HDMI 1.4b & HDCP 2.2 compliant.
- Extends 4K60 4:2:0 up to 40M and 1080p up to 70M via CAT6a.
- Enables bi-directional IR pass-through.
- Optional support for bi-directional RS-232.
- Supports 7.1 multi-channel audio formats.
- Automatic EDID management.
- Bi-directional PoC for easy power management.
- High performance ESD & surge protection circuitry.
- All connections located on one side of each device

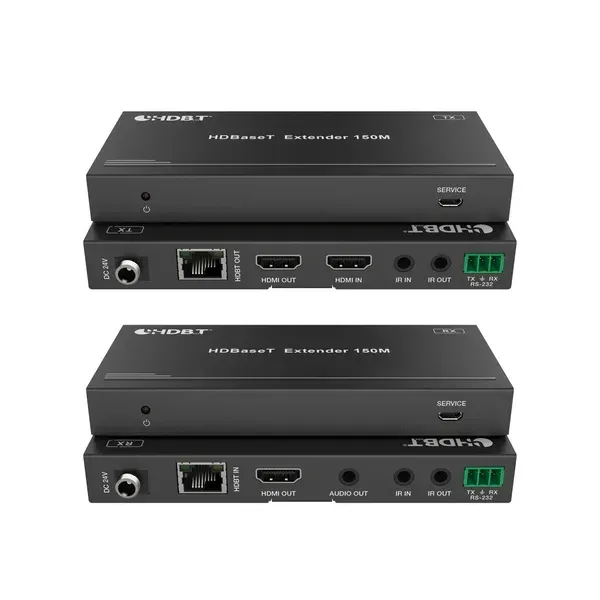

DVDO-Xtend-Pair150
Features
- HDMI 2.0b / HDCP 2.2 & 1.4 / DVI 1.0 compliant
- Support 18Gbps video bandwidth
- The maximum extended transmission distance via a single Cat5e/6 cable:
- 394ft / 120m for 4K2K signals
- 492ft / 150m for 1080p signals
- Support one HDMI loop output on the transmitter
- Extract audio to analog stereo output on receiver
- Bi-directional IR, RS-232 and CEC pass-through
- HDR, HDR10+, Dolby Vision and HLG function supported
- Support PoC (Power over Cable) function
- Compact design for easy and flexible installation

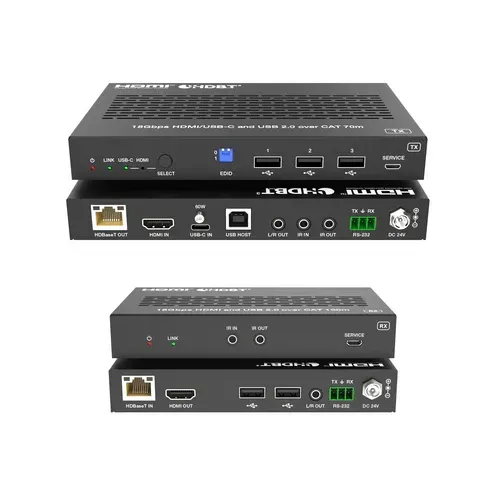

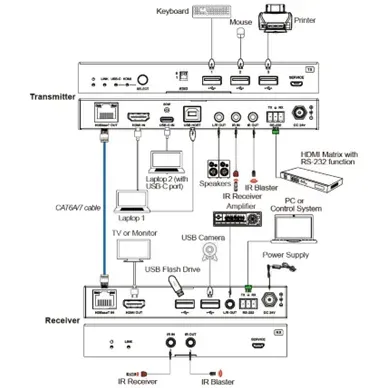

DVDO-Xtend-USBC-HDMI-70
Features
- Compliant with HDMI 2.0b and HDCP 2.3, 18Gbps video bandwidth & HDBaseT 3.0
- Video resolution up to 4K2K@60Hz (YUV 4:4:4)
- Uncompressed video transmission up to 230ft/70m for 4K@30Hz & 1080p signals or 131ft/40m for 4K@60Hz signals over a single CAT6A/7 cable
- Tx includes 1 x HDMI and 1 x USB-C inputs, 1 x HDBT output, 1 x USB 2.0 host and 3 x USB 2.0 clients
- Rx includes 1 x HDMI output, 2x USB 2.0 clients
- USB-C and HDMI signal inputs support auto or manual switching mode
- Auto switching supports HDMI 5V or signal detect selection
- USB-C supports DP-ALT mode for A/V, USB 2.0 data and power charging up to 60 watts
- Tx/Rx USB-A client ports VBUS on or off depends on whether the USB host is connected
- HDR, HDR10, HDR10+, Dolby Vision LLM and HLG pass-through
- 4K to 1080p downscaling through HDMI output
- Both Tx and Rx support analog audio de-embedding
- RS-232 signal pass-through and guest-mode control
- Bi-directional IR pass-through, USB 2.0 signal transmission
- Advanced EDID management
- Each USB-A port provides power up to 5V/500mA
- Bi-directional 24V POC, with POC switch

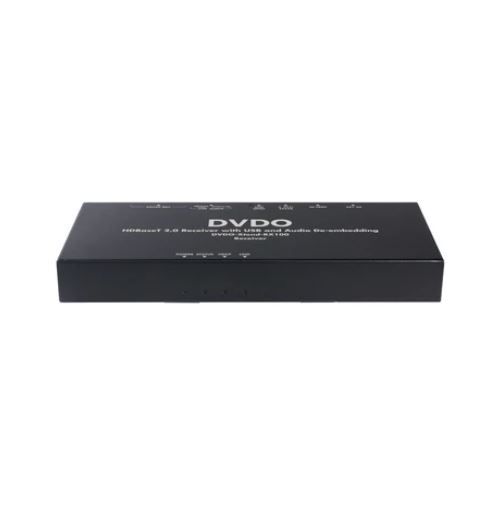

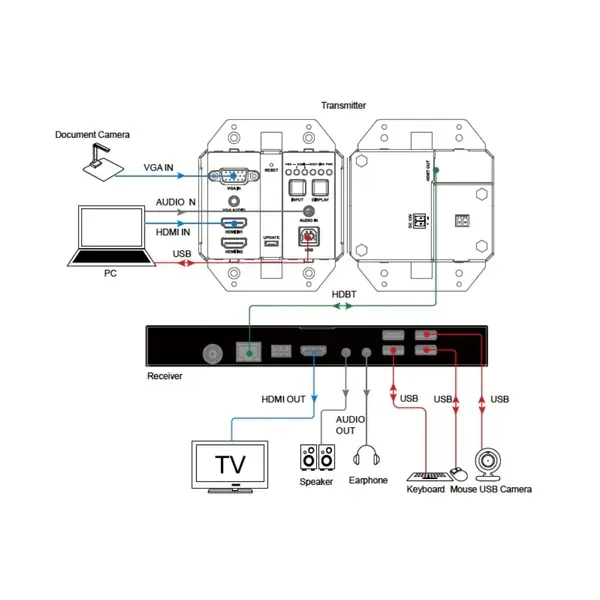

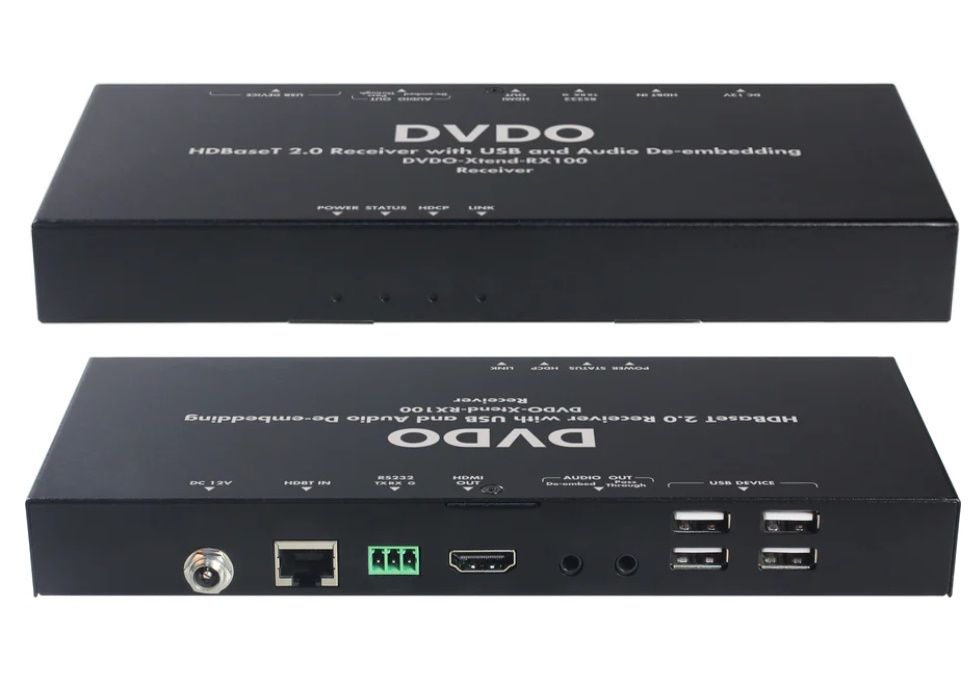

DVDO-Xtend-RX100
Features
- HDMI at 4K60 Over Ethernet (RX) (100M)
- Simple, ultra-slim and cost-effective HDBT 2.0 receiver.
- HDBT input and HDMI output support resolutions up to 4K@60Hz (YUV 4:2:0) and HDCP 2.2.
- HDBT transmission up to 100m/330ft at 1080P@60Hz and 4K@60Hz (YUV 4:2:0) via a Cat 6/6a/7 cable.
- HDBT transmission up to 100m/330ft at 1080P@60Hz and up to 90m/295ft at 4K@60Hz (YUV 4:2:0) via a Cat 5e cable.
- Supports analog audio pass-through from transmitter to receiver.
- Supports analog audio de-embedding for HDMI output.
- High-speed USB 2.0 pass-through over HDBT.
- Provides four USB Device ports for remote KVM (Keyboard, Video, Mouse) control.
- Supports bi-directional RS232 serial communication to control the RS232-enabled device when works with a normal HDBT transmitter.
- Supports bi-directional RS232 serial communication to control a wall plate transmitter when integrated with this transmitter.
- 4K UHD Resolution: Adopting 8.5 million resolution SONY CMOS sensor. Maximum resolution is up to 4K with frame rate up to 30fps.

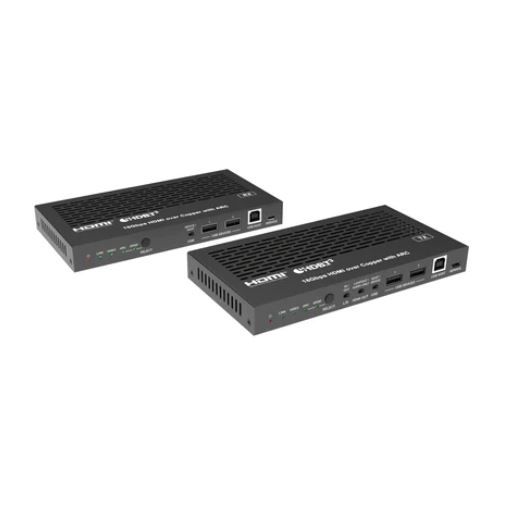

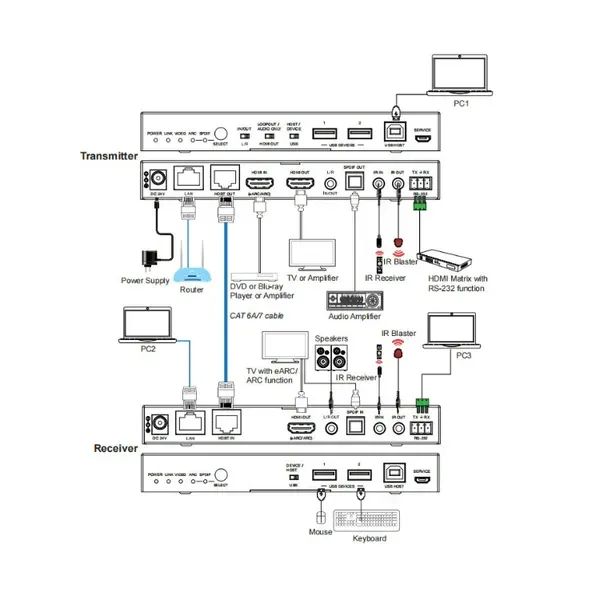

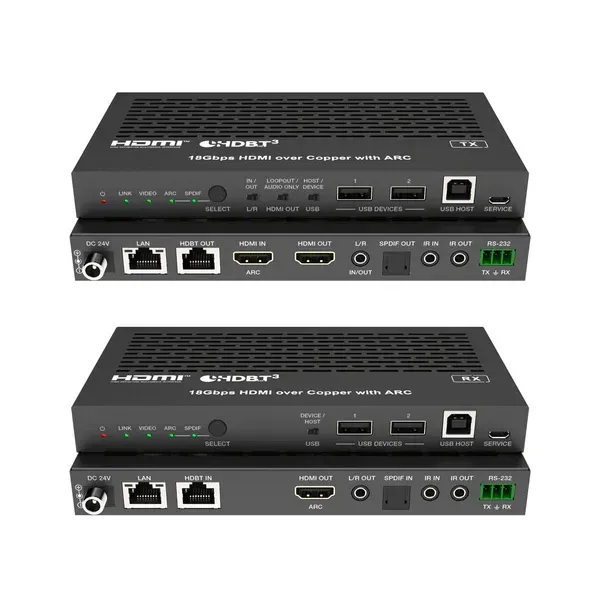

DVDO-Xtend-Pair3.0E
Features
- HDMI at 4K60 Over Ethernet with HDBaseT 3.0 with eArc (TX/RX) (100M)
- This HDBaseT 3.0 Extender can extend uncompressed HD/UHD video and audio signals, eARC/ARC, RS-232, bi-directional IR, 1GbE Ethernet and USB2.0 signals up to 100m/328ft via a single CAT6A/7 cable. The Transmitter supports audio embedding or de-embedding. The Receiver supports audio de-embedding. It also supports eARC/ARC from RX's HDMI output pass through to TX's HDMI input or de-embedding to TX's HDMI audio only and SPDIF output ports, USB 2.0 (Host/Device is configurable) and bidirectional POC
- The Extender offers the most convenient solution for HDMI extension via a single CAT cable with long distance capability and is the perfect solution for home/commercial application.
