USB Extenders & Wall Plates

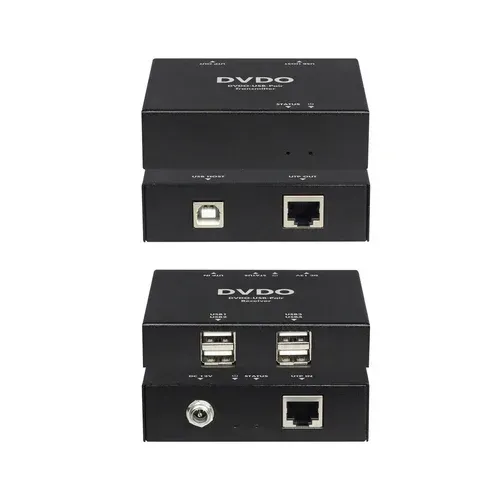

DVDO-USB-Pair

USB 2.0 50m Extender over Ethernet

Features

• Supports high-speed USB 2.0 (Up to 480Mbps) over a Cat 5e/6 cable up to 50m/165ft
• Up to 4 USB device connections supported by the Hub
• Transmitter can be powered by USB port, receiver can be powered by lockable DC supply with 500mA to each USB device
• Plug-and-play, with no driver installation required
• Supports all major operating systems: Windows, Mac OS and Linux
• Compatible with USB 1.1 and USB 1.0 peripherals

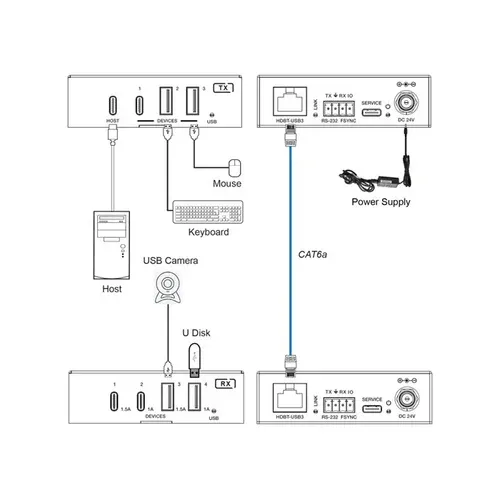

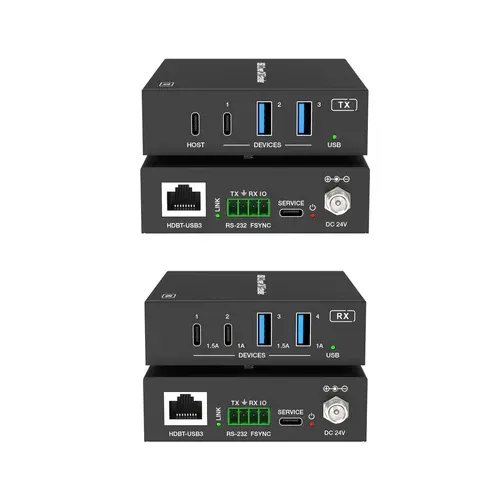

 DVDO-Xtend-USBC-USB-100

USB-C & USB-A 3.2 Gen 1 100m Extender over HDBaseT

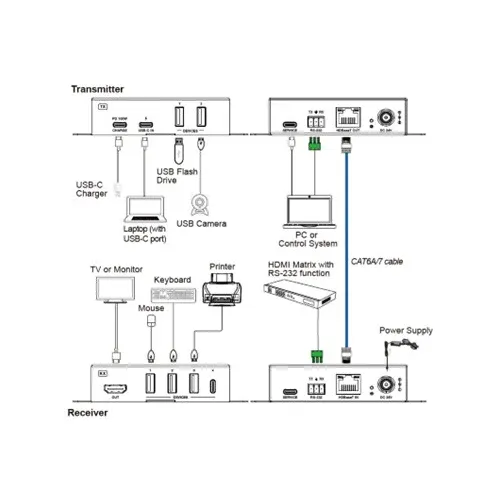

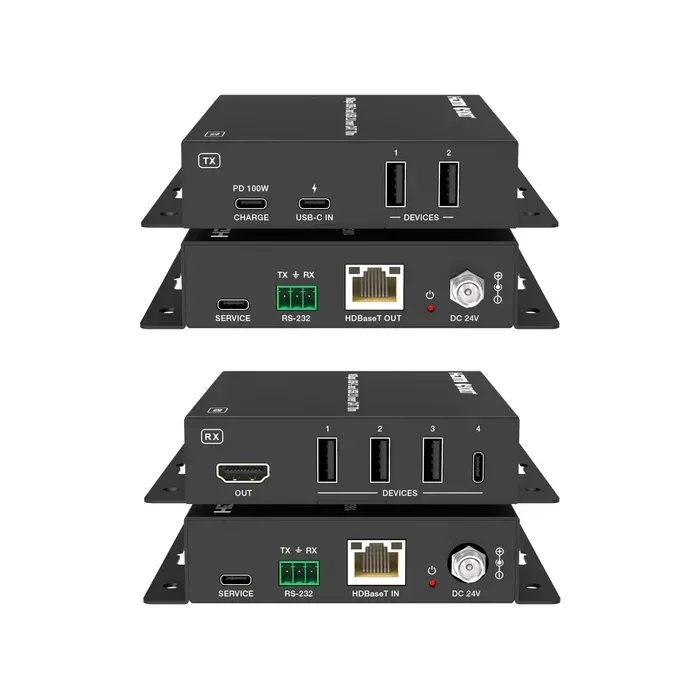

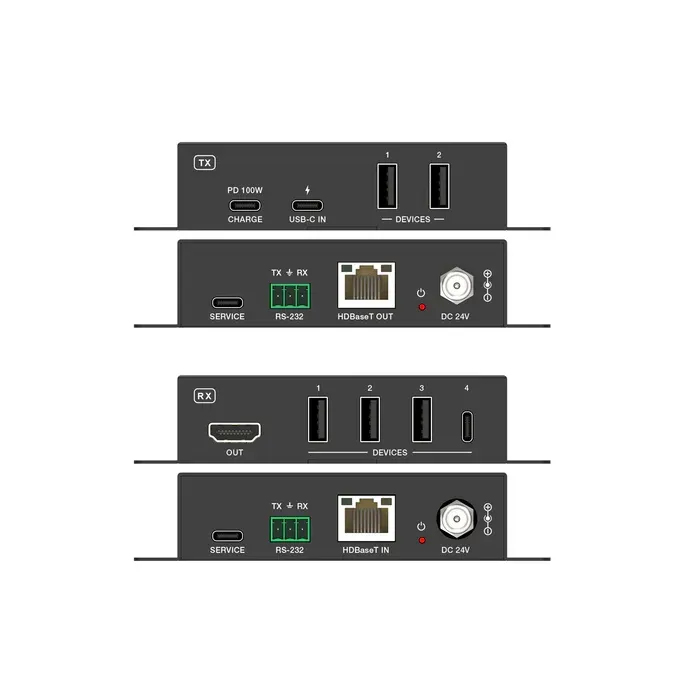

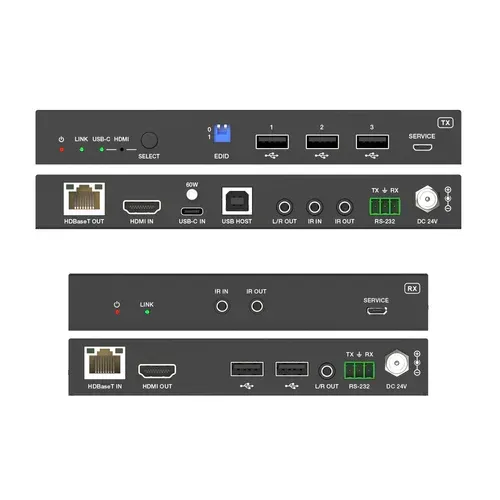

DVDO-Xtend-USBC-HDMI-70

4K60 HDMI & USB-C 70m Extender Over HDBaseT 3.0 with USB (Tx/Rx)

Features

• Compliant with HDMI 2.0b and HDCP 2.3, 18Gbps video bandwidth & HDBaseT 3.0
• Video resolution up to 4K2K@60Hz (YUV 4:4:4)
• Uncompressed video transmission up to 230ft/70m for 4K@30Hz & 1080p signals or 131ft/40m for 4K@60Hz signals over a single CAT6A/7 cable
• Tx includes 1 x HDMI and 1 x USB-C inputs, 1 x HDBT output, 1 x USB 2.0 host and 3 x USB 2.0 clients
• Rx includes 1 x HDMI output, 2x USB 2.0 clients
• USB-C and HDMI signal inputs support auto or manual switching mode
• Auto switching supports HDMI 5V or signal detect selection
• USB-C supports DP-ALT mode for A/V, USB 2.0 data and power charging up to 60 watts
• Tx/Rx USB-A client ports VBUS on or off depends on whether the USB host is connected
• HDR, HDR10, HDR10+, Dolby Vision LLM and HLG pass-through
• 4K to 1080p downscaling through HDMI output
• Both Tx and Rx support analog audio de-embedding
• RS-232 signal pass-through and guest-mode control
• Bi-directional IR pass-through, USB 2.0 signal transmission
• Advanced EDID management
• Each USB-A port provides power up to 5V/500mA
• Bi-directional 24V POC, with POC switch

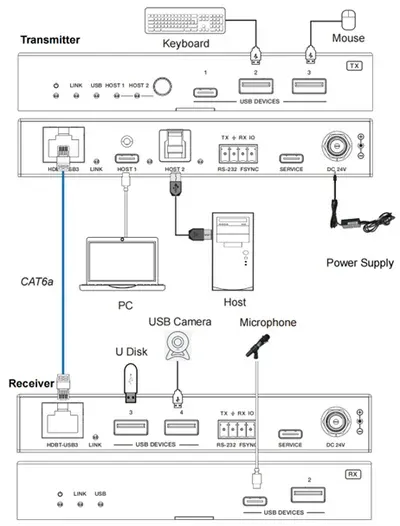

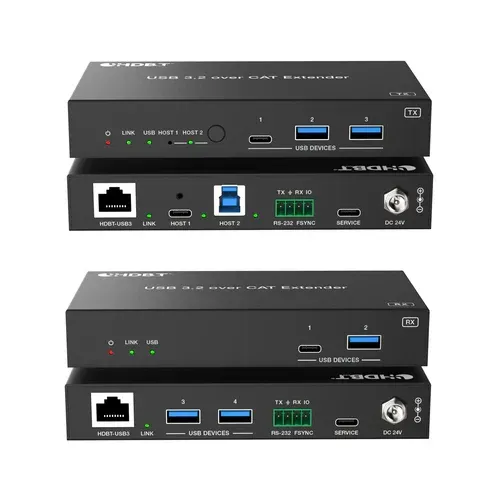

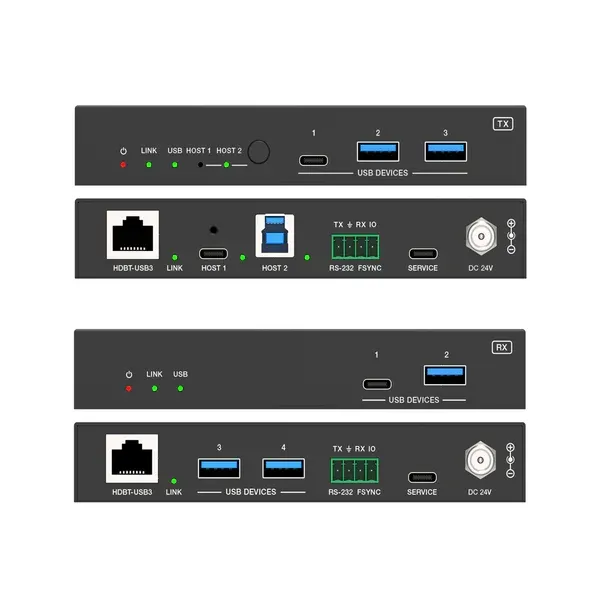

DVDO-Xtend-USBC-USB-BB-1

2-Host USB-C & USB 3.2 Gen 1 100m Extender over HDBaseT

Features

• Extension of USB 3.2 Gen 1 up to 100m/328ft via CAT6a cable
• USB 3.2 Gen 1 connectivity with data transfer rate up to 5Gbps
• Backwards compatible with USB 2.0 and 1.1
• Hardware acceleration for isochronous and bulk transfer
• Tx features 1 x USB-C and 1 x USB-B selectable input ports as well as 1 x USB-C and 2 x USB-A device ports
• Auto switching and manual switching modes
• Rx features 1 x USB-C and 3 x USB-A output ports (2 x 5V@1A and 2 x 5V@1.5A)
• RS-232 pass-through and API control
• Firmware upgrade via USB-C service port
• FSYNC GPIO pass-through for industry camera use
• Bi-directional 24V PoC (Power over Cable)
• Plug-and-play with no drivers, downloads or software required

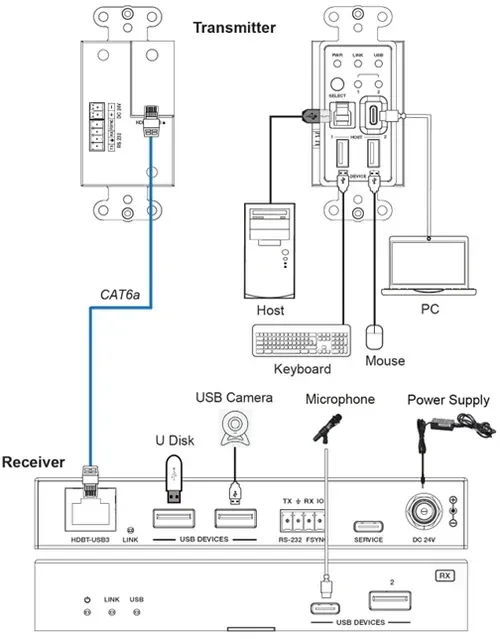

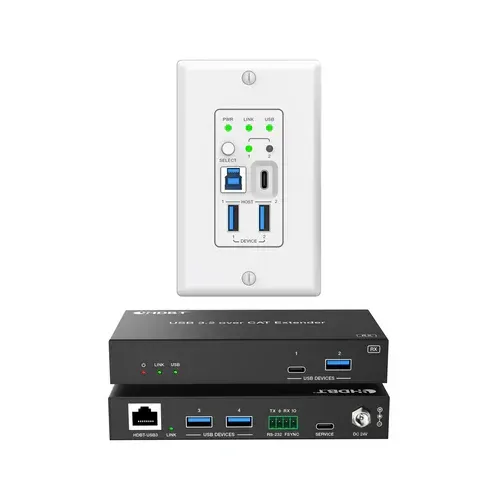

DVDO-Xtend-USBC-USB-WB-1

2-Host USB-C & USB 3.2 Gen 1 100m Extender over HDBaseT

Features

• Extension of USB 3.2 Gen 1 up to 100m/328ft via CAT6a cable
• USB 3.2 Gen 1 connectivity with data transfer rate up to 5Gbps
• Backwards compatible with USB 2.0 and 1.1
• Hardware acceleration for isochronous and bulk transfer
• Wall plate Tx features 1 x USB-C + 1 x USB-B selectable input ports and 2 x USB-A device ports
• Auto switching and manual switching modes

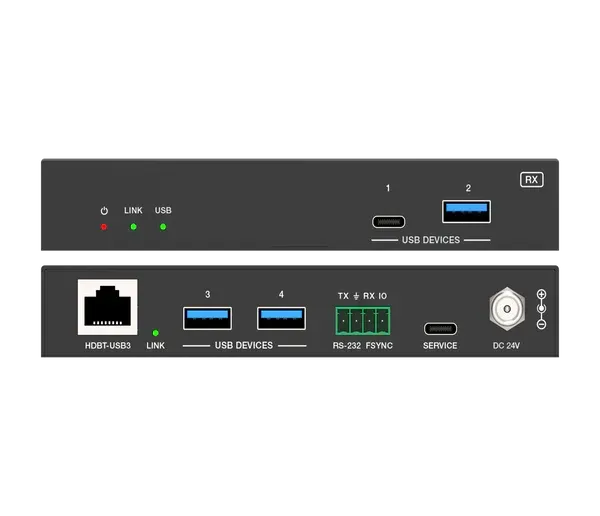

• Rx features 1 x USB-C and 3 x USB-A output ports (2 x 5V@1A and 2 x 5V@1.5A)
• RS-232 pass-through and API control
• Firmware upgrade via USB-C service port
• FSYNC GPIO pass-through for industry camera use
• Bi-directional 24V PoC (Power over Cable)
• Plug-and-play with no drivers, downloads or software required

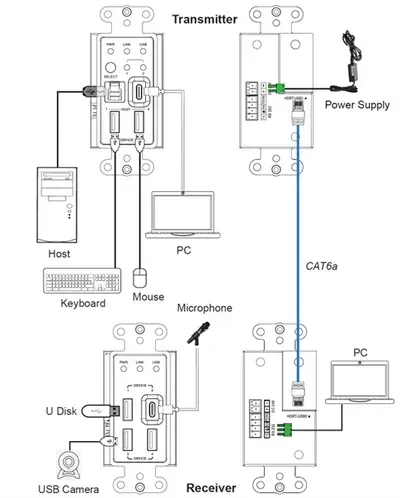

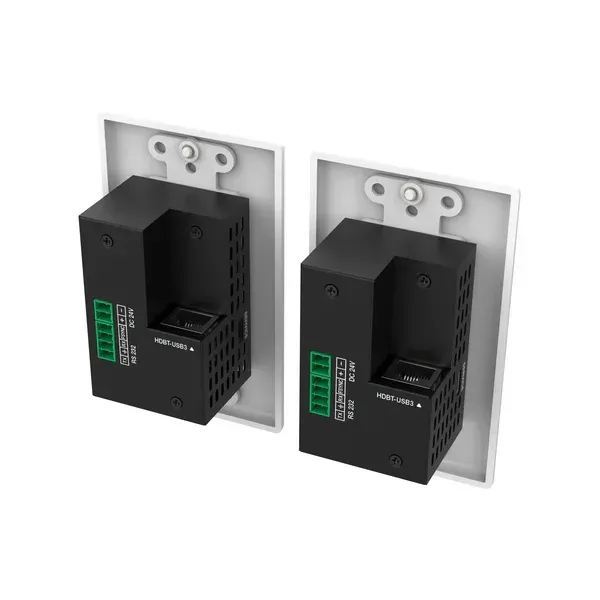

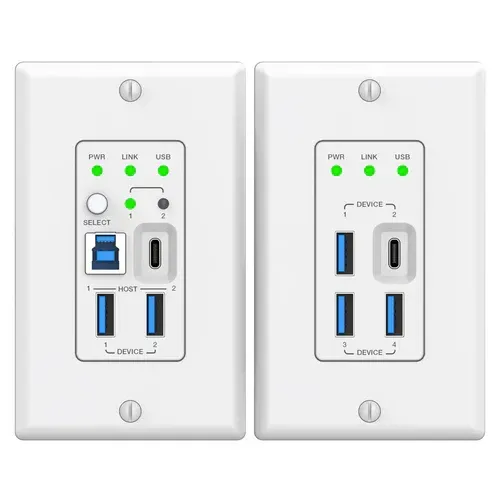

DVDO-Xtend-USBC-USB-WW-1

2-Host USB-C & USB 3.2 Gen 1 100m Extender over HDBaseT

Features

• Extension of USB 3.2 Gen 1 up to 100m/328ft via CAT6a cable
• USB 3.2 Gen 1 connectivity with data transfer rate up to 5Gbps
• Backwards compatible with USB 2.0 and 1.1
• Hardware acceleration for isochronous and bulk transfer
• Wall plate Tx features 1 x USB-B + 1 x USB-C selectable input ports and 2 x USB-A device ports
• Auto switching and manual switching modes
• Wall plate Rx features 1 x USB-C and 3 x USB-A output ports (2 x 5V@1A and 2 x 5V@1.5A)
• RS-232 pass-through and API control
• - Firmware upgrade via USB-C service port
• - FSYNC GPIO pass-through for industry camera use
• - Bi-directional 24V PoC (Power over Cable)
• - Plug-and-play with no drivers, downloads or software required

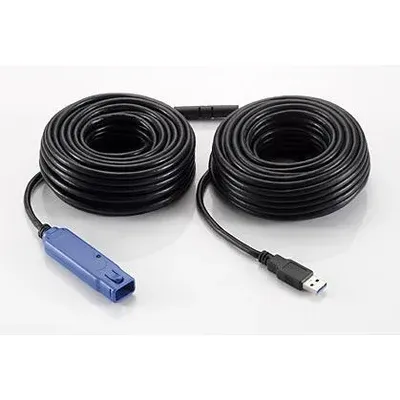

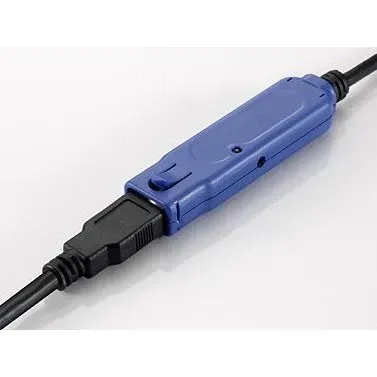

DVDO-USB3.1-15M

USB 3.1 Active Repeater Cable AM-AF, 15 Metres

Features

• Active USB 3 Gen 1 repeater cable, allowing connect USB 3 signals up to 15 Meters.
• USB 3 Gen 1 specifications, downwards compatible with USB 2.0/1.1 devices.
• Data transfer speeds up to 5 Gbps.
• Plug& Play, no driver required.
• USB bus power/DC self-power.
• Over current detection and protection.

DVDO-USB3.1-15MPSU

USB 3.1 Active Repeater Cable AM-AF, 15 Meters with Power

Features

• USB 3 Gen. 1 specifications, downward compatible with USB 3 Gen 1/2.0/1.1 devices.
• High data transfer rate up to 5 Gbps.
• USB bus power.
• Plug and Play, no additional driver required.
• Connector: USB 3 Type A male to USB 3 Type A Female.
• External power adapter (5V/2A )for heavy power consumption devices.
• Daisy-Chain connection up to a maximum of 2 repeater cables.
• Lockable mechanism design for secure connection.

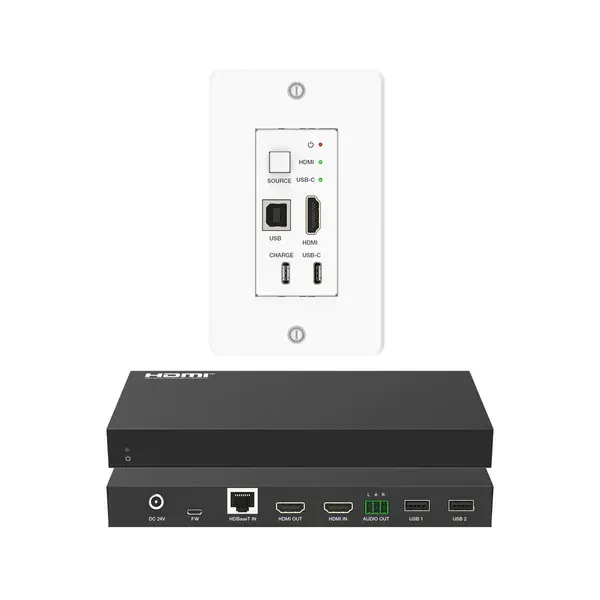

DVDO-RS-2

4K HDMI & USB-C 70m Wall Plate Extender over HDBaseT with USB

Features

• Video resolutions up to 4K@60Hz 4:4:4
• Supports HDMI and USB-C input
• USB-C AV Input
• USB-C charging port
• HDMI Input
• USB2.0 extension with Receiver Compliant with HDMI 2.0b, HDCP 2.2 and DisplayPort 1.2a
• Supports 18Gbps video bandwidth
• HDBaseT output can extend video transmission distance up to 230ft / 70m for 1080P or 131ft / 40m for 4K via a single cat5e/6/7 cable
• Supports HDR10 and HDR10+
• Audio formats support Dolby® Atmos, TrueHD, Digital+, Digital; DTS X, HD Master Audio, HD High Resolution Audio, 5.1; PCM 2-8Ch
• US one-gang housing for Decora-style wall plate openings
• Input selection supports automatic mode and manual mode
• Remotely powered via PoE

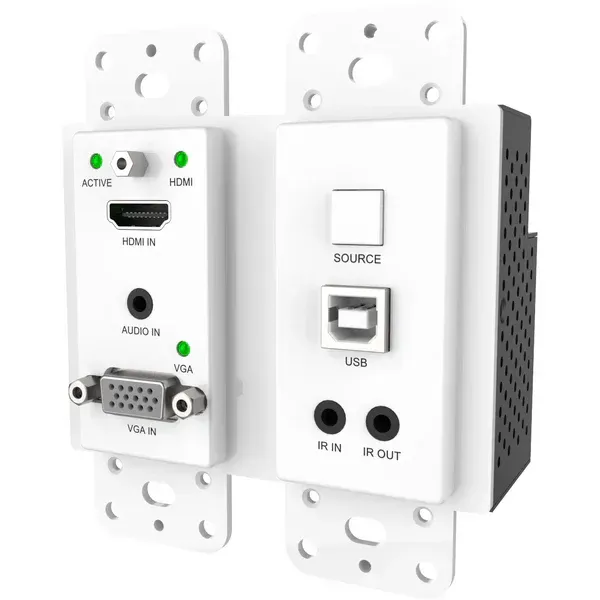

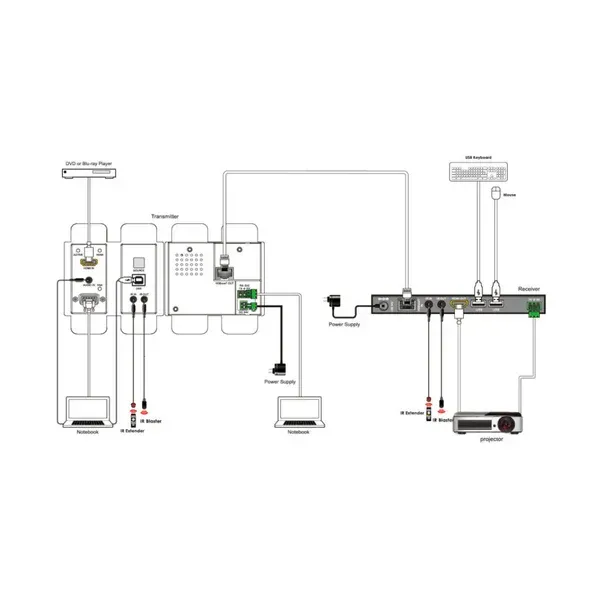

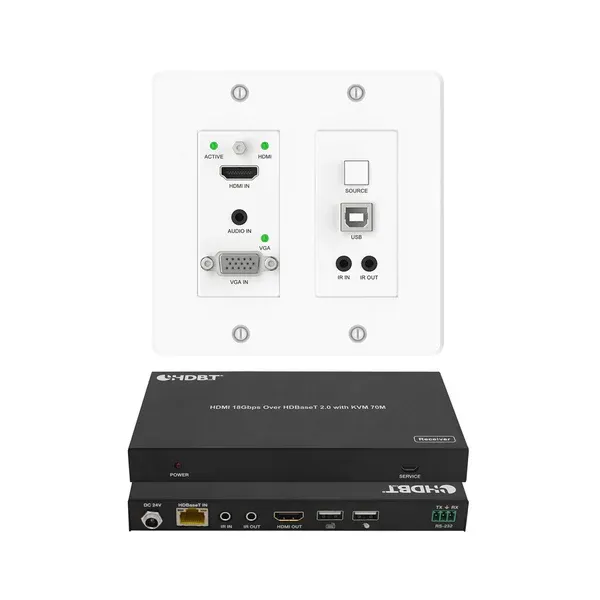

DVDO-RS-3

4K HDMI & VGA 70m Wall Plate Extender over HDBaseT with USB

Features

• HDMI 2.0b 18Gbps, HDCP 2.2 compliant
•  Up to 4K2K@60Hz(4:4:4), 4K2K@30Hz, 1080p@120Hz
•  Up to 7.1 channel HD audio
•  HDBaseT™ over a single CAT6/6a/7 cable up to 230ft/40m distance for 4K2K@60Hz(4:4:4) or up to 230ft/70m distance for 1080p60Hz
•  Built-in scaling for VGA input
•  Automatic and manual switching modes
•  Two-way IR, RS-232 and USB supported
•  2-Gang US Decora wall plate
•  24V POC is supported
