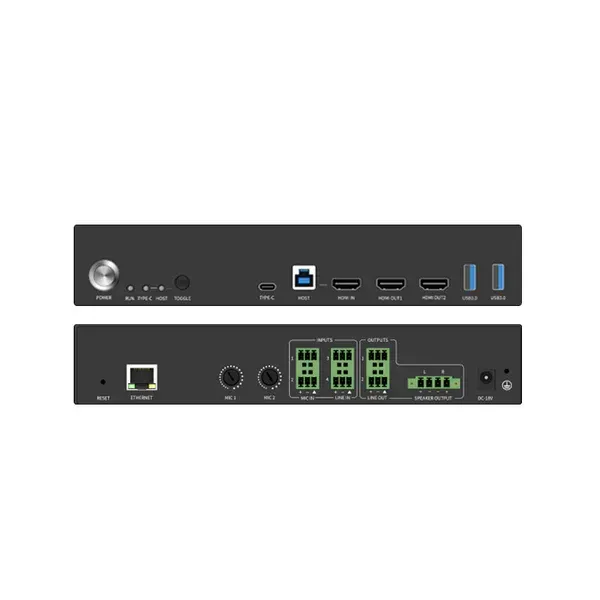

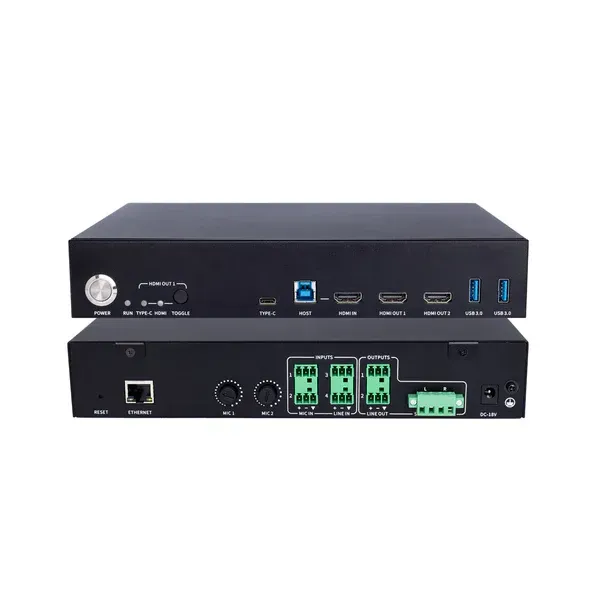

DVDO-CS-1

Conference System with USB-C & HDMI Inputs and Built-in DSP

Features

• Two video inputs: 1 x USB-C + 1 x HDMI with USB-B host port
• Video inputs and outputs support resolutions up to 4K 60Hz 4:4:4
• Two USB 3.0 device ports for webcams, video bars, PTZ cameras, KVM,…
• Two mirrored HDMI outputs for connection to single or dual display
• High performance DSP technology for 2 x microphone inputs, 2 x line level inputs and 2 x line level outputs
• Audio embedding and de-embedding to/from HDMI and USB-C inputs
• Built-in 2x20W power amplifier for speaker output
• TCP/IP control with Web GUI with multiple audio and video controls
• Configurable DSP settings include routing, mixing, filtering, ducking, equalization, delay, echo cancellation.

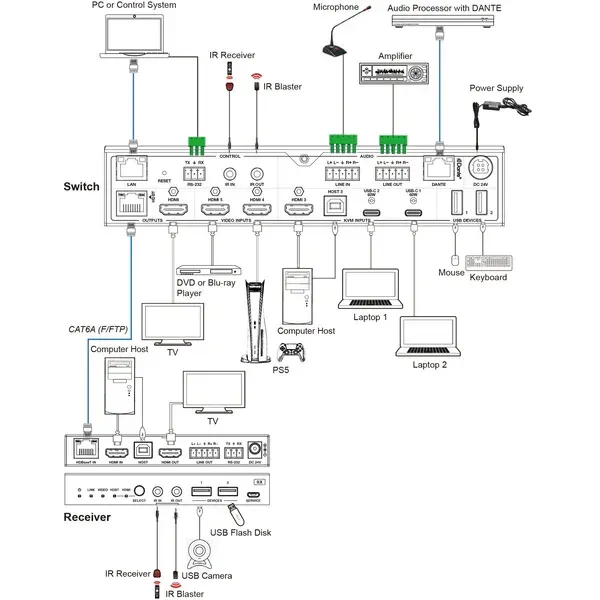

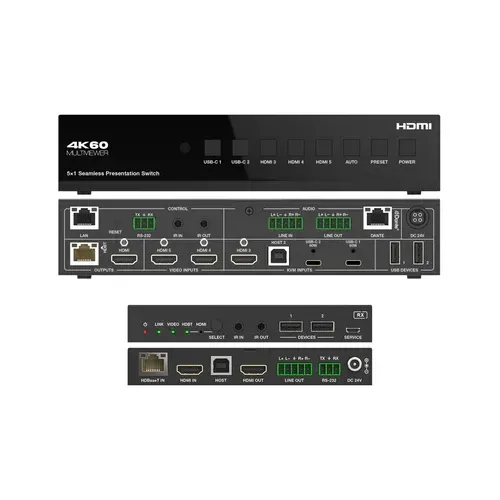

DVDO-USBC-HDMI-PS-51

4K60 HDMI & USB-C Seamless Switcher / Scaler / Extender with USB & Dante (Tx/Rx)

Features

• Compliant HDMI 2.0b, HDCP 2.2 and DP 1.2 compliant
• Support video resolutions up to 4K@60Hz 4:4:4 & 18Gbps video bandwidth
• Uncompressed 4K60 over HDBT 3.0 up to 132ft/40m via single CAT6A cable
• Uncompressed 1080p & 4K30 over HDBT 3.0 up to 230ft/70m via single CAT6A cable
• Up to 5 categories of multiview display modes: Single/PIP/PBP/Triple/Quad
• 5x1 seamless switching (single screen) and fast switching (multiview) function
• Inputs: 2x USB-C, 3x HDMI, 1x Analog audio, 1x Dante 2ch
• Outputs: 1x HDMI and 1x HDBT (PoE) mirrored, 1x Analog audio, 1x Dante 2ch
• Dante 2x2 audio input and output
• USB-C supports DisplayPort Alt mode for A/V, USB 2.0, 100m Ethernet and 60W charging
• Local USB 2.0 KVM switching and extending USB 2.0 over HDBT 3.0
• Signal input supports manual switching and automatic switching modes
• Analog/Dante audio embedding, analog/Dante audio de-embedding output
• Advanced EDID management
• Control via front panel buttons, IR remote, RS-232, TCP/IP or Web GUI. CEC/RS-232 control external devices ON/OFF
• Support standard PoE power supply (TX_PSE, RX_PD)

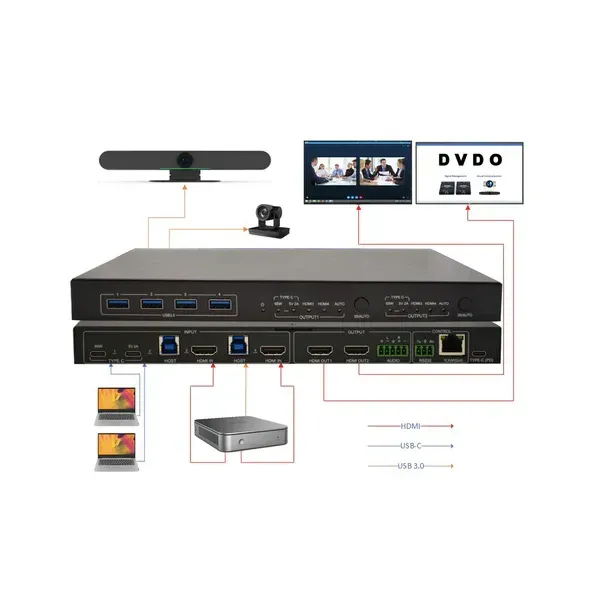

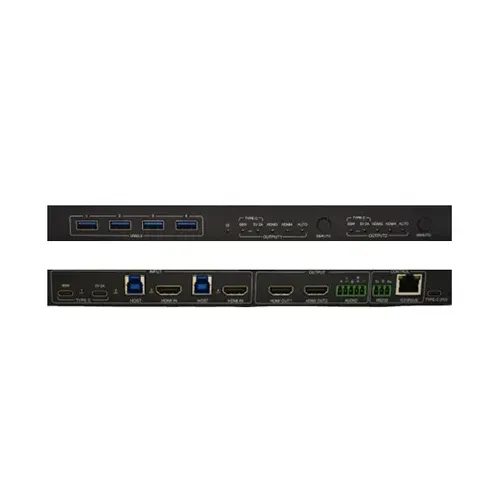

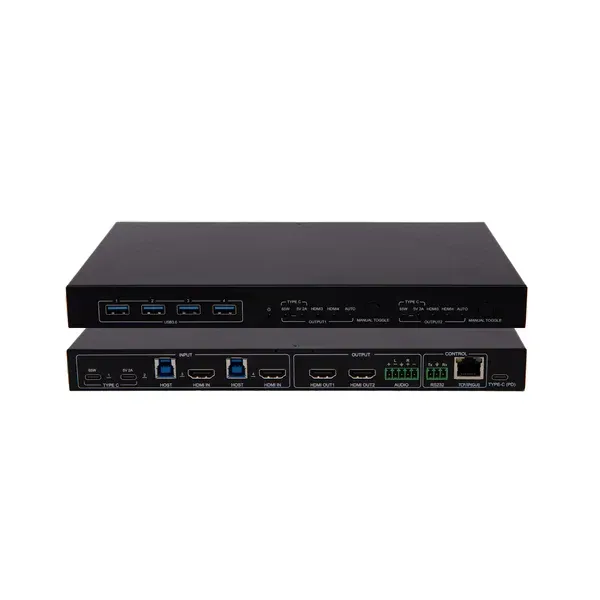

DVDO-USBC-HDMI-PS-42

4K 4x2 Presentation Switcher with USB-C & HDMI Inputs

Features

• Two HDMI inputs support resolutions up to 4K@60 4:4:4 18Gbps
• HDMI 2.0 & HDCP2.2 compliant
• HDMI audio pass-through + separate audio output with de-embedding
• Two USB-C inputs support resolutions up to 4K30 4:2:0 with 65W charging (first port)
• USB-C inputs support DP 1.2 MST (Multi-Stream Transport) function
• Dual HDMI output with conference, matrix, mirror & manual modes as well as 4K to 1080p downscaling
• Four USB 3.2 Gen 1 ports (5Gbps) for peripherals such as KVM, cameras, speakerphones, touch monitors, etc…
• Two additional USB 3.2 ports for host switching
• CEC control & EDID management
• Controllable via front panel, RS232, TCP/IP (GUI) and Auto-switching
• Firmware upgraded by TCP/IP (GUI)

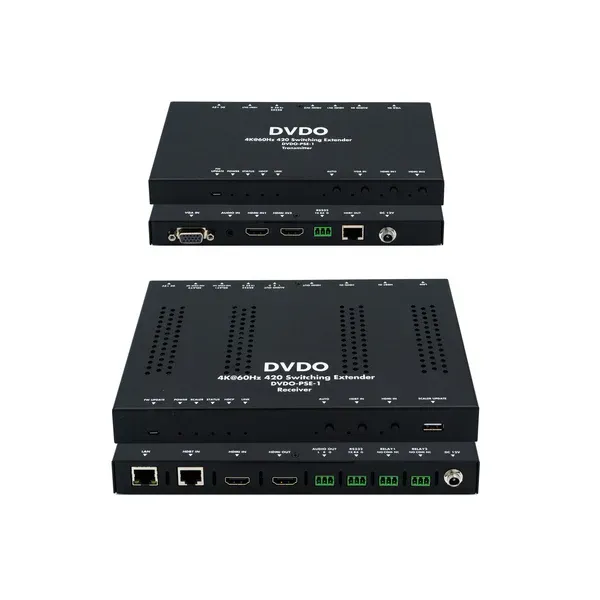

DVDO-PSE-1

4K60 HDMI & VGA Switcher / Extender Over HDBaseT (Tx/Rx)

Features

• Two HDMI and one VGA inputs included on transmitter
• One HDMI input, one HDMI output along with one analog audio output included on receiver
• HDMI inputs support resolutions up to 4K@60Hz YUV 4:2:0 and HDCP 2.2; VGA input supports resolutions up to 1920x1200@60Hz
• Built-in 4K@60Hz YUV 4:4:4 scaler to match the native resolution of the display
• Supports automatic and manual button switch among all inputs
• Via a Cat 6a/7 cable, signal transmission up to 131ft/40m at 4K@60Hz (YUV 4:2:0) and 230ft/70m at 1080p
• Via a Cat 5e/6 cable, signal transmission up to 115ft/35m at 4K@60Hz (YUV 4:2:0) and 197ft/60m at 1080p
• HDMI audio de-embedded output with analog stereo
• Provides Telnet API control and configuration
• One-way PoH enables the transmitter to receive power from the power-on receiver (no additional power supply required at transmitter)
• Supports automatic CEC and API command to power on/off the display device

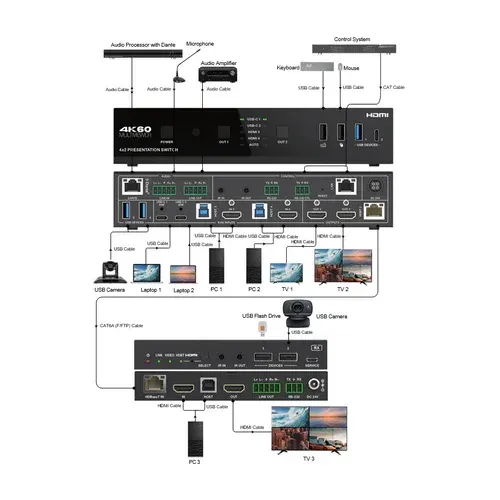

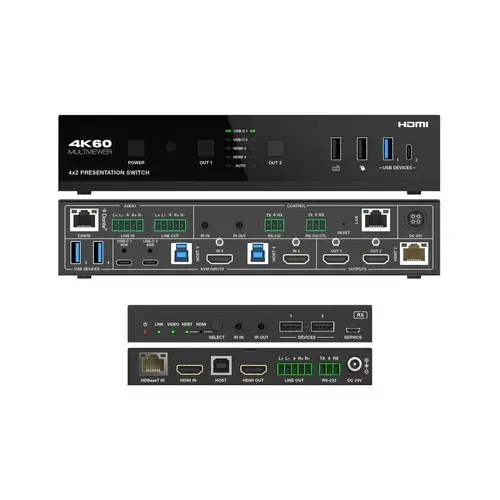

DVDO-USBC-HDMI-PS-42-Xtend

4K 4x2 Seamless Presentation Switcher / Extender with USB-C & HDMI Inputs & Dante

Features

• HDMI 2.0b, HDCP 2.3, HDBaseT 3.0 & DP 1.4 compliant
• Video resolutions up to 4K@60Hz 4:4:4 @ 18Gbps
• Transmission of uncompressed 4K30 & 1080p signals up to 230ft/70m and 4K60 signals up to 132ft/40m over HDBaseT 3.0 via single Cat6A cable
• Multiple multiview display modes: Auto / Single / PIP / PBP / Triple / Quad / Custom
• 4x2 seamless switching (single screen) and fast switching (multiview)
• Manual & auto switching modes
• Inputs: 2 USB-C, 2 HDMI, 1 analog audio, 1 Dante 2ch
• Outputs: 1 HDMI, 1 HDMI + 1 HDBT mirrored, 1 analog audio, 1 Dante 2ch
• Dante 2x2 audio input and output
• USB-C supports 4K60 DisplayPort Alt Mode, USB 3.2 Gen 1 up to 5Gbps, 1G LAN and 60W charging
• Local USB 3.2 switching and extending USB 2.0 over HDBT 3.0
• Local USB KVM hotkeys and mouse switching
• Audio embedding & de-embedding
• Built-in DSP with gain, equalizer, volume and delay control
• Advanced EDID management
• CEC/RS-232 control to turn external devices ON/OFF
• Control via front panel buttons, IR remote, RS-232, TCP/IP or intuitive Web GUI
• Standard PoE from Tx to Rx (TX_PSE, RX_PD)
