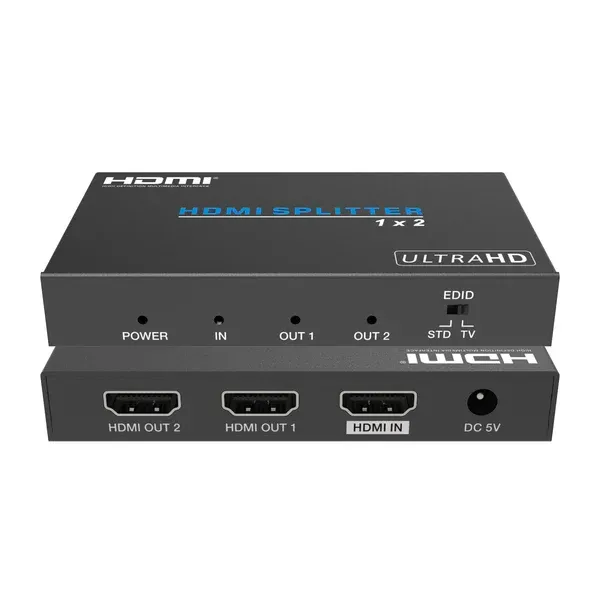

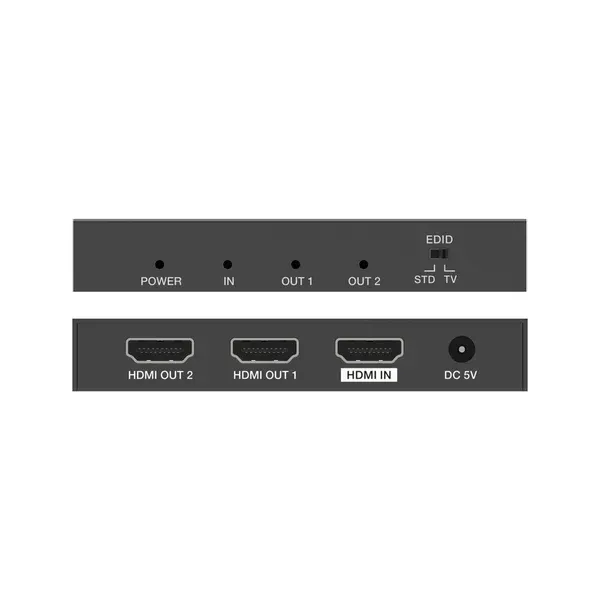

DVDO-Splitter-12

4K 1x2 HDMI Splitter

Features

• HDMI 2.0b, HDCP 2.2 compliant
• Up to 4K2K@60Hz with 24bit RGB/YCBCR 4:4:4
• VESA format up to QSXGA@60Hz
• Supports LPCM 7.1CH, Do by TrueHD, and DTS-HD Master Audio
• Built-in equalizer, retiming and driver
• Smart EDID, STD (1080p) mode and TV (copy OUT1) mode
• Compact design for an easy and flex ble installation

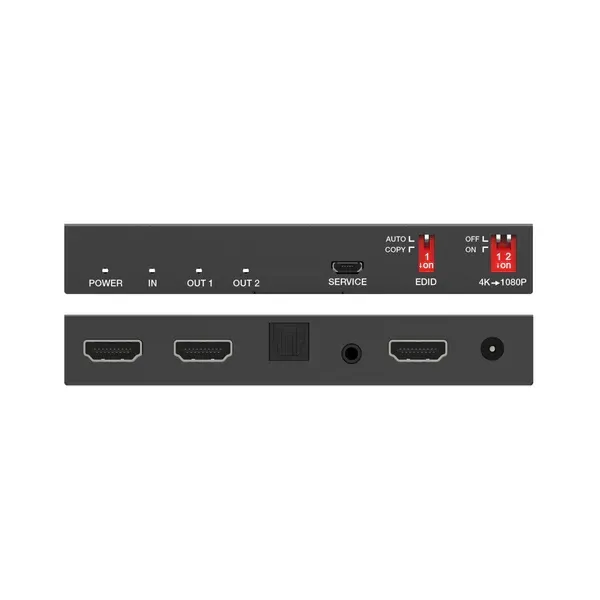

DVDO-Splitter-12-SE

4K 1x2 HDMI Splitter with Scaler & Audio Extract

Features

• HDMI 2.0b, HDCP2.2 / HDCP1.4 compliant.
• Supports HDMI resolutions up to 4K2K@50/60Hz (4:4:4)
• Extracts digital and analog audio from HDMI source.
• Supports output bypass and 4K->1080P downscaling function via dial switch on panel.
• EDID can be set to COPY and AUTO modes via panel dial.
• COPY: Copies OUT 1 port EDID setting to all output ports;
• AUTO: Compares OUT 1 and OUT 2 EDID setting and outputs the best resolution to all outputs.
• Supports HDMI audio formats LPCM, Dolby
• Digital/Plus/EX, Dolby True HD, DTS, DTS-EX,DTS-96/24,
• DTS High Res, DTS-HD Master Audio, DSD

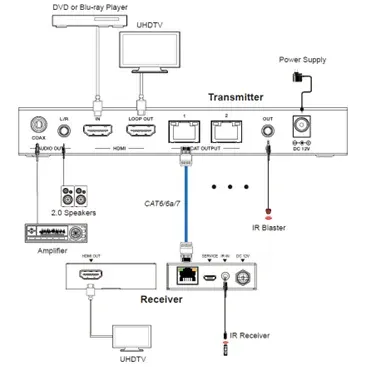

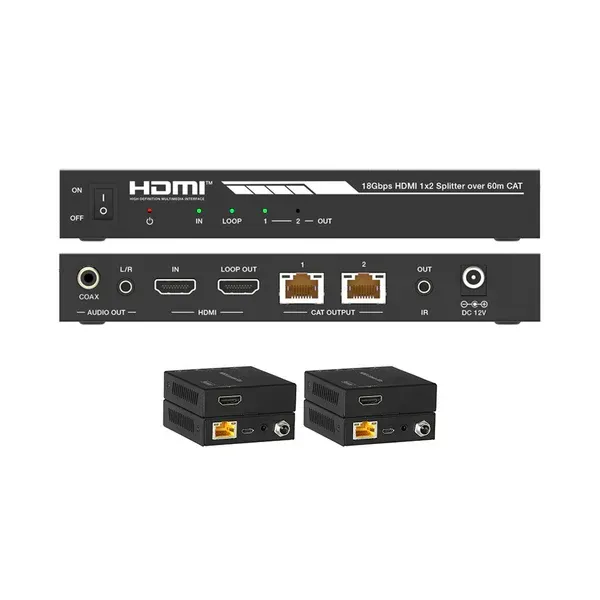

DVDO-Splitter-12-CAT

4K 1x2 HDMI Splitter with Category Outputs

Features

• Includes 1x2 splitter and 2 Cat receivers
• HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant
• 18Gbps video bandwidth
• Supports video resolutions up to 4K2K@50/60Hz 4:4:4
• HDR, HDR10+, HLG, Dolby Vision
• Up to 7.1CH HD audio pass-through
• Digital and analog audio de-embedded outputs
• Extend the signal transmission distance up to 115ft/35m at the resolution of 4K2K@60Hz, 164ft/50m at 4K2K@30Hz, 197ft/60m at 1080P@60Hz via a single Cat6/6a/7 cable
• 1 HDMI input, 1 HDMI loop output and 2 Cat outputs
• 20-60Hz IR control source equipment from Rx side
• Advanced EDID management
• One-way PoC function (only from transmitter to receiver)

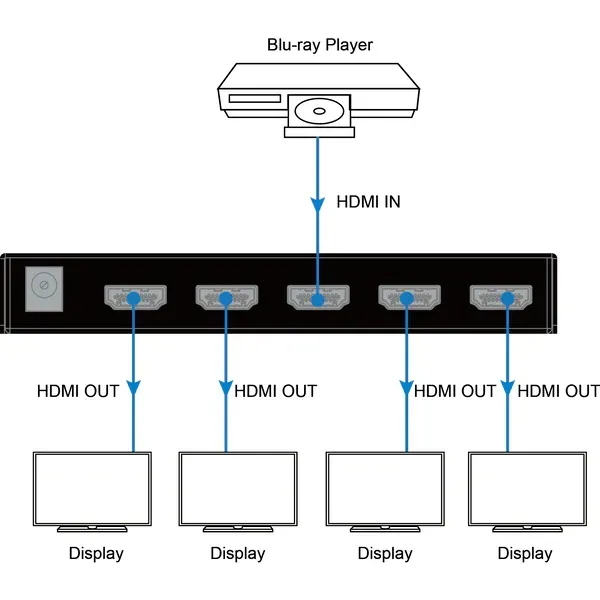

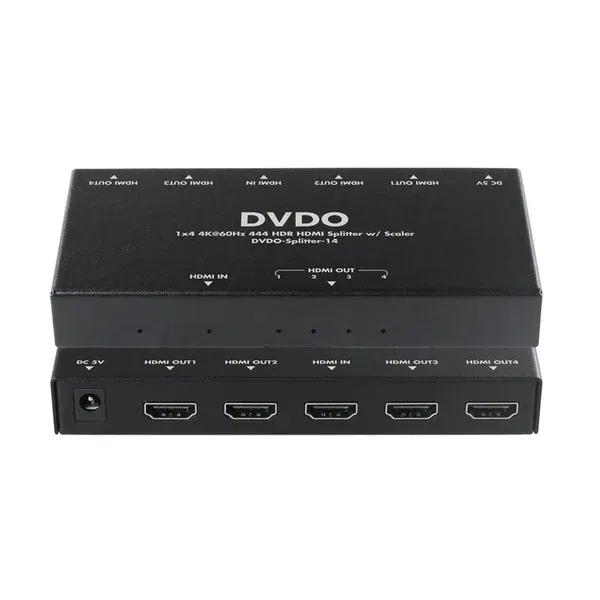

DVDO-Splitter-14

4K 1x4 HDMI Splitter with HDR

Features

• Distributes one HDMI input signal to four HDMI display
• Supports HDMI 2.0b Specifications, including:
• - Data rates up to 18.0 Gbps
• - HDR and 3D
• - HD lossless audio formats
• HDCP 2.2 compliant
• Each HDMI output supports scaling down to 1080P individually (fps will not change during scaling down from 4K to 1080P)
• Automatic input cable equalization for signal regeneration compensation

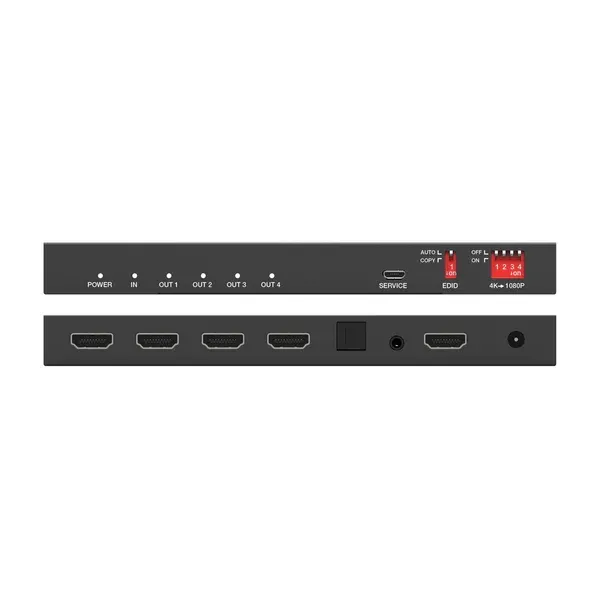

DVDO-Splitter-14-SE

4K 1x4 HDMI Splitter with Scaler & Audio Extract

Features

• HDMI 2.0b, HDCP2.2/HDCP1.4 compliant.
• Supports HDMI resolution the maximum up to 4K2K@50/60Hz (4:4:4).
• Supports digital and analog audio extract output from HDMI source.
• Supports output bypass and 4K->1080p downscaler function via dial switch on panel.
• EDID can be selected COPY and AUTO modes via dial switch on panel.
• Supports analog audio PCM 2.0.
• Supports optical audio pass-through format about LPCM 2.0/2.1/5.1CH, Dolby 5.1, Dolby True HD, Dolby DD+, DTS 5.1, DTS-ES 6/DTS-HDMA 5.1, DTS HD-HRA 5.1.

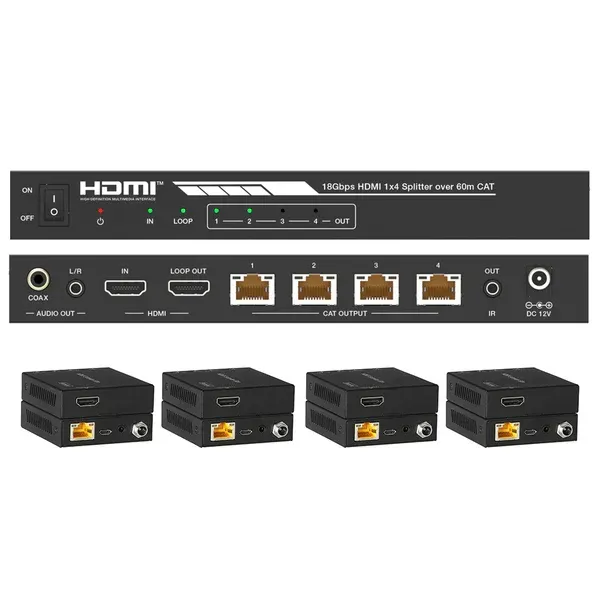

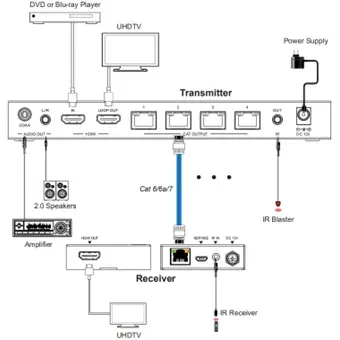

DVDO-Splitter-14-CAT

4K 1x4 HDMI Splitter with Category Outputs

Features

• Includes 1x4 splitter and 4 Cat receivers
• HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant
• 18Gbps video bandwidth
• Supports video resolutions up to 4K2K@50/60Hz 4:4:4
• HDR, HDR10+, HLG, Dolby Vision
• Up to 7.1CH HD audio pass-through
• Digital and analog audio de-embedded outputs
• Extend the signal transmission distance up to 115ft/35m at the resolution of 4K2K@60Hz, 164ft/50m at 4K2K@30Hz, 197ft/60m at 1080P@60Hz via a single Cat6/6a/7 cable
• 1 HDMI input, 1 HDMI loop output and 4 Cat outputs
• 20-60Hz IR control source equipment from Rx side
• Advanced EDID management
• One-way PoC function (only from transmitter to receiver)

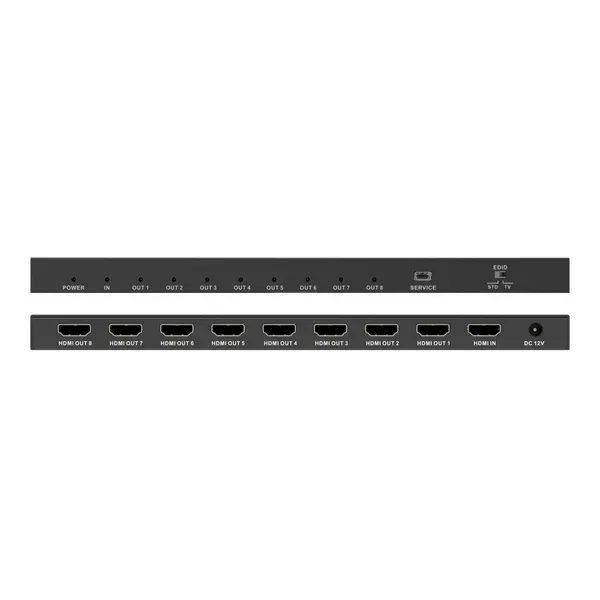

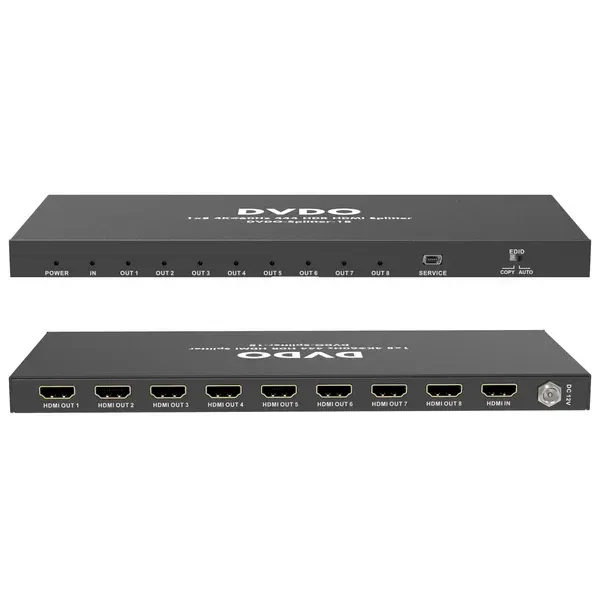

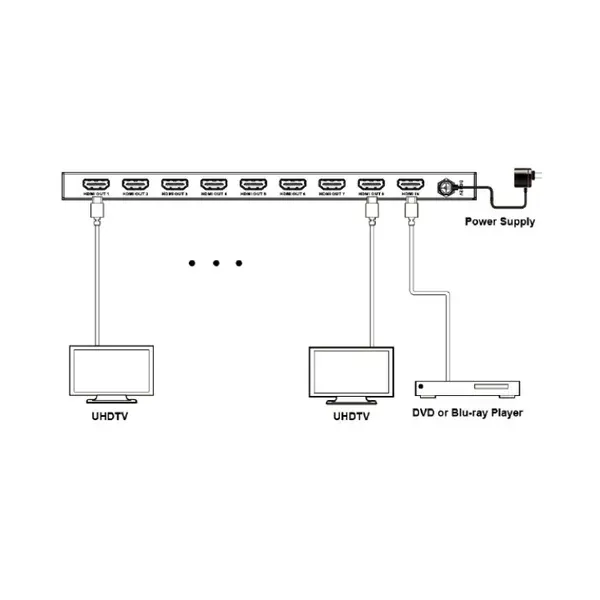

DVDO-Splitter-18

4K 1x8 HDMI Splitter with HDR

Features

 HDMI 2.0b, HDCP 2.2 compliant

•    Supports 18Gbps bandwidth

•    Supports resolution up to 4K@60Hz 4:4:4

•    Supports HDR function

•    Supports COPY / AUTO EDID control

•    Compact design for easy and flexible installation

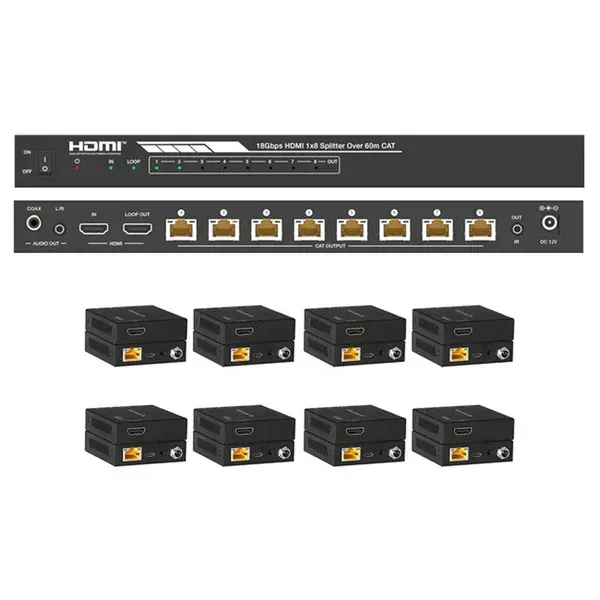

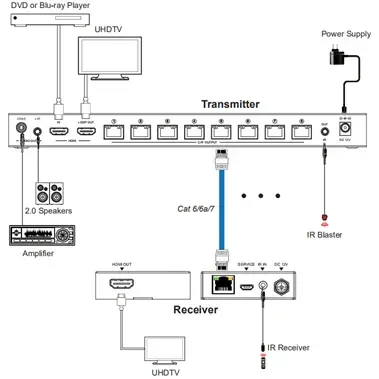

DVDO-Splitter-18-CAT

4K 1x8 HDMI Splitter with Category Outputs

Features

• Includes 1x8 splitter and 8 CAT receivers
• HDMI 2.0, HDCP 2.2 / 1.x and DVI 1.0 compliant
• 18Gbps video bandwidth
• Supports video resolutions up to 4K2K@50/60Hz 4:4:4
• 3D, HDR, HDR10+, HLG, Dolby Vision
• Up to 7.1CH HD audio pass-through
• Digital and analog audio de-embedded outputs
• Extend the signal transmission distance up to 115ft/35m at the resolution of 4K2K@60Hz, 164ft/50m at 4K2K@30Hz, 197ft/60m at 1080P@60Hz via a single CAT6/6a/7 cable
• 1 HDMI input, 1 HDMI loop output and 8 Cat outputs
• One-way IR control signal pass-through
• Advanced EDID management
• One-way PoC function (only from transmitter to receiver)

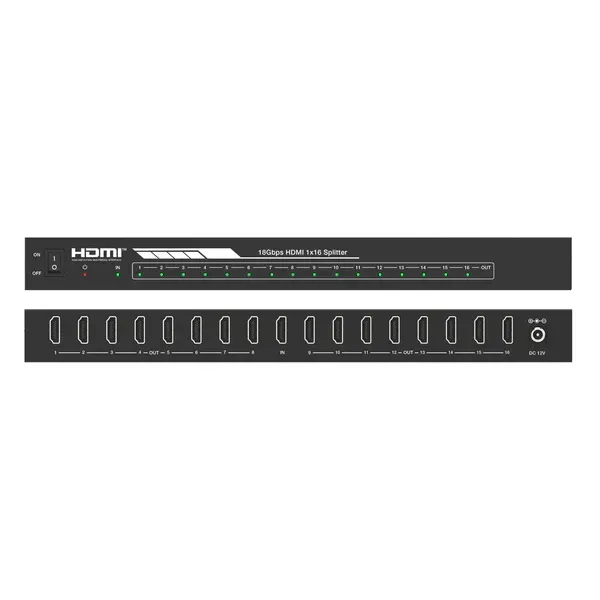

DVDO-Splitter-116

4K 1x16 HDMI Splitter with HDR

Features

• HDMI 2.0b, HDCP 2.2 / 1.x and DVI 1.0 compliant
• Support 18Gbps video bandwidth
• Support video resolution up to 4K2K@50/60Hz 4:4:4
•  Support digital audio format: DTS-HD/Dolby-true-HD/LPCM 7.1/DTS/Dolby-AC3/DSD
• Support HDR, HDR10, HDR10+, HLG and Dolby vision
• Advanced EDID management
• Compact design for easy and flexible installation
