New Products from DVDO
27 September 2024
Introducing New DVDO Products at Alto Technologies
Alto Technologies is now offering a range of new DVDO products, designed to deliver reliable performance in professional workspaces and educational establishments:

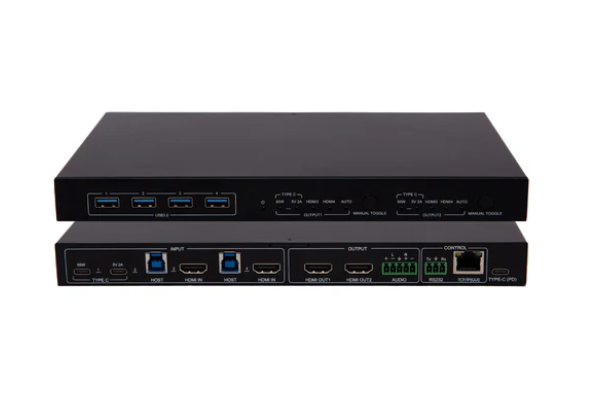

DVDO Presentation Switcher
- Switches seamlessly between USB-C and HDMI devices
- Supports resolutions up to 4K with automatic display scaling
- Four inputs (2 HDMI, 2 USB-C) and dual HDMI outputs for multi-screen setups
- Compact design with simplified setup for ease of use in presentations
- Two HDMI inputs support resolutions up to 4K@60 4:4:4 18Gbps
- Two USB-C inputs support resolutions up to 4K30 4:2:0 with 65W charging
- HDMI 2.0 & HDCP2.2 compliant
- Ideal for classrooms, conference rooms, and corporate settings
- Long-range, stable audio transmission for large venues
- Extends digital S/PDIF or HDMI ARC audio signals up to 150m/490ft via a single Cat5e or Cat6 cable

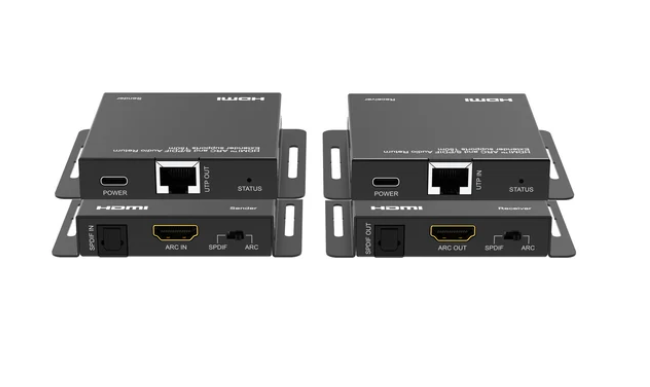

DVDO Audio Extender
- Ideal for professional AV setups where high-quality audio extension is required Extends HDMI ARC or S/PDIF audio signals up to 150m over a single CAT6/5e cable
- Includes CEC pass-through for unified control with a single remote
- Supports PCM, DTS and Dolby Digital audio formats
- Dual digital audio inputs: 1 x S/PDIF and 1 x HDMI ARC
- Dual digital audio outputs: 1 x S/PDIF and 1 x HDMI ARC can output each signal separately
- Supports 5.1 and 7.1 Dolby/DTS surround sound for immersive audio

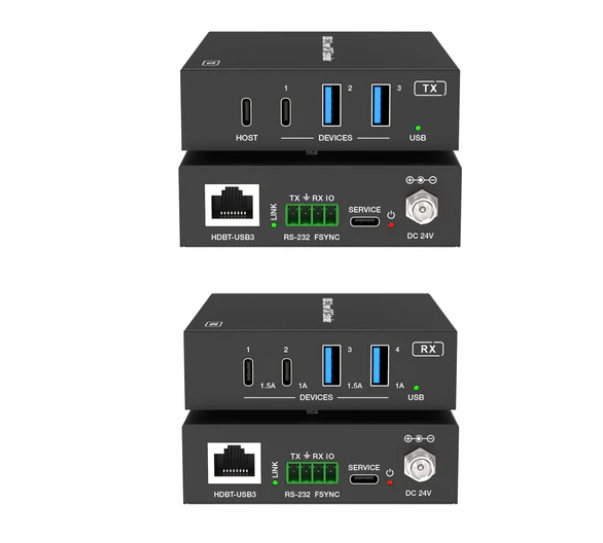

DVDO 100M USB Extender
- Transmits USB 3.2 Gen 1 signals up to 100m/328ft over a single CAT6a cable
- Compatible with USB peripherals including cameras, microphones, and touch panels
- Plug-and-play, no drivers required, making setup quick and simple
- High-bandwidth transmission ensures smooth, uninterrupted connectivity
- Perfect for large conference rooms, educational environments, or exhibition halls
- USB 3.2 Gen 1 connectivity with data transfer rate up to 5Gbps
- Tx features 1x USB-C host port, 1x USB-C and 2x USB-A device ports
- Rx features 2x USB-C (1x 5V@1A and 1x 5V@1.5A) and 2x USB-A device ports (1x 5V@1A and 1x 5V@1.5A)
- Bi-directional 24V PoC (Power over Cable)
- Streaming protocols: RTSP, ONVIF, UDP, HLS & NDI-HX (NDI-HX requires optional license

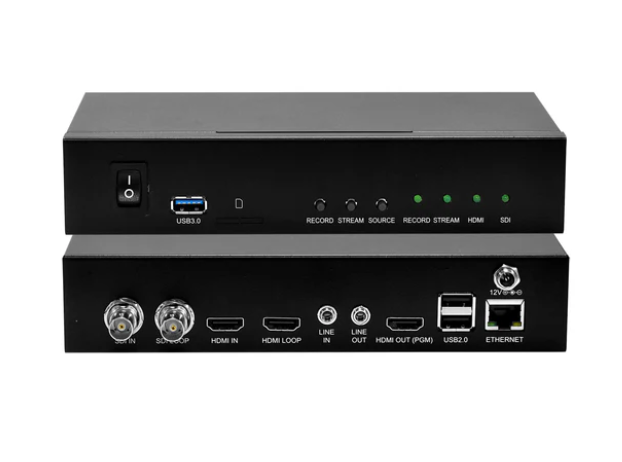

DVDO Streamer/Recorder
- Full HD streaming and recording with HDMI and SDI input options
- Streams to platforms like YouTube and Facebook Live while recording in 1080p
- Features a simple front-panel interface for easy control
- Suitable for hybrid workspaces, live events, and educational use
- Provides reliable, high-quality streaming and recording in one device
- Switchable HDMI & 3G-SDI inputs (up to 1080p60 resolution) with HDMI & 3G-SDI loop-outs.
- Separate 3.5mm audio input and output for audio embedding and de-embedding
- Recording: USB 3.0 port for external storage devices
- H.264/H.265/AVC encoding & decoding
These DVDO products offer versatile solutions for AV professionals, educators, and businesses. Contact Alto Technologies to learn more about how these can enhance your setup.
